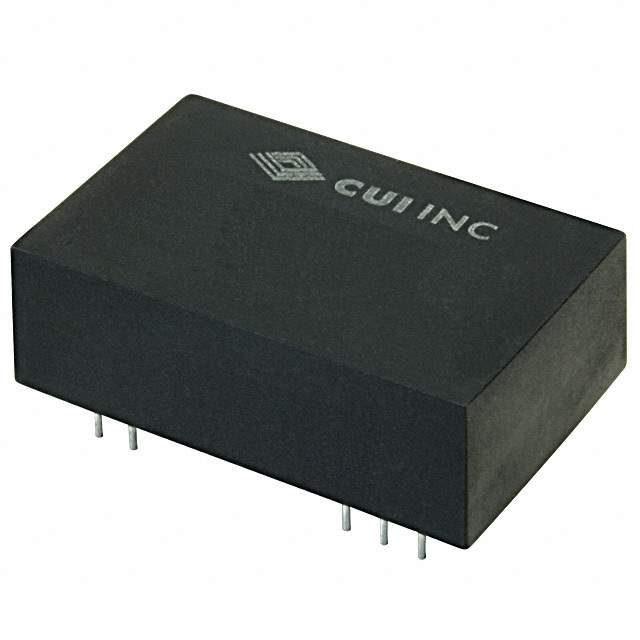

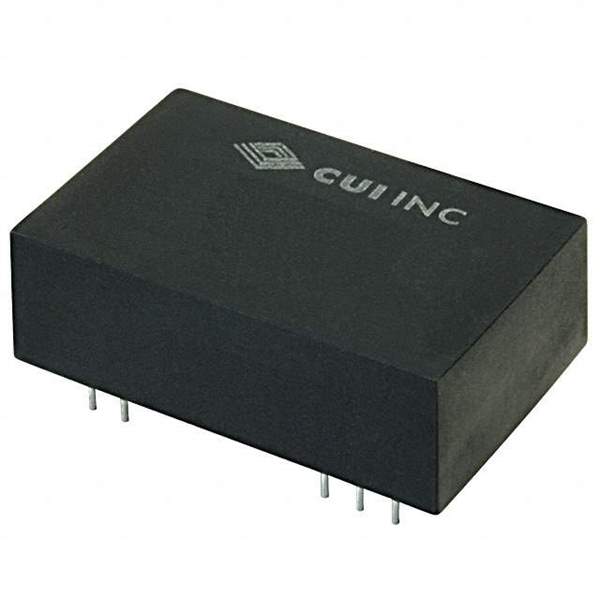

PQB3-D12-S24-D Real Image
Same model may have multiple batches, images only for reference.

PQB3-D12-S24-D

Part No PQB3-D12-S24-D
Manufacturer CUI Inc.
Catalog PMIC - Voltage Regulators - Linear + Switching
Description DC DC CONVERTER 24V 3W / Isolated Module DC DC Converter 1 Output 24V 125mA 9V - 18V Input
Datasheet
PQB3-D12-S24-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr CUI Inc.
Series PQB3-D (3W)
Package Bulk
Product Status Not For New Designs
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 18V
Voltage - Output 1 24V
Current - Output (Max) 125mA
Power (Watts) 3 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features OCP, SCP
Temperature Range - Operating -40°C ~ 105°C
Efficiency 83%
Mounting Type Through Hole
Package / Case 24-DIP Module, 10 Leads
Dimension 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Approval Agency EN
Standard Number 55024; 55032 Class A
Base Product Number PQB3-D12
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Other Names PQB3-D12-S24-D-ND,PQB3D12S24D,102-3046-5,2266-PQB3-D12-S24-D
Standard Package 15
Win Source Part Number 1187050-PQB3-D12-S24-D
Ultra Librarian 3D Model Ultra Librarian PQB3-D12-S24-D CAD Model

Description

The PQB3-D12-S24-D is a 3W Isolated Module DC-DC Converter from CUI Inc.

  • Application: ITE (Commercial)
  • Voltage Isolation: 1.5 kV
  • Maximum Output Current: 125mA
  • Efficiency: 83%
  • Temperature Range: -40°C to 105°C
  • Mounting Type: Through Hole
  • Package/Case: 24-DIP Module, 10 Leads
  • Dimensions: 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
