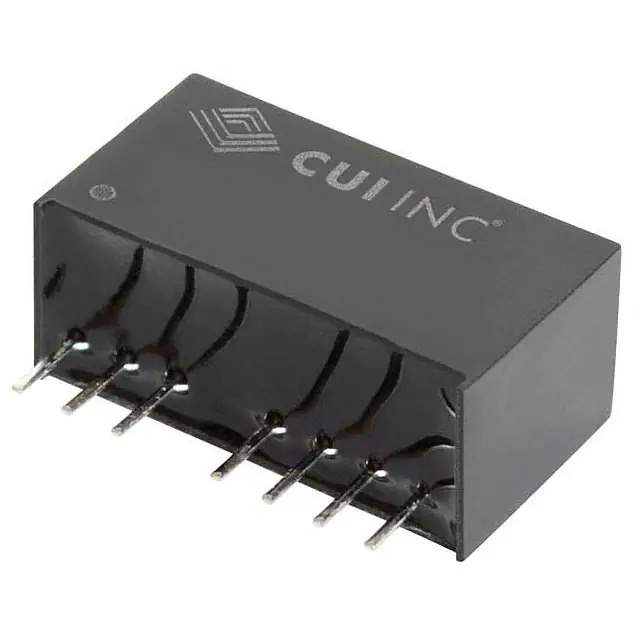

PQMC3-D24-D15-S Real Image
Same model may have multiple batches, images only for reference.

PQMC3-D24-D15-S

Part No PQMC3-D24-D15-S
Manufacturer CUI Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 3W / Isolated Module DC DC Converter 2 Output 15V -15V 100mA, 100mA 18V - 36V Input
Datasheet
PQMC3-D24-D15-S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr CUI Inc.
Series PQMC3-S (3W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 100mA, 100mA
Power (Watts) 3 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features OCP, SCP
Temperature Range - Operating -40°C ~ 105°C
Efficiency 81%
Mounting Type Through Hole
Package / Case 8-SIP Module, 7 Leads
Size / Dimension 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm)
Approval Agency EN
Standard Number 55024; 55032 Class A
Base Product Number PQMC3
Standard Package 22 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 847606-PQMC3-D24-D15-S
Ultra Librarian 3D Model Ultra Librarian PQMC3-D24-D15-S CAD Model

Description

The 847606-PQMC3-D24-D15-S is a 3W isolated module DC-DC converter from CUI Inc.

  • Series: PQMC3-S (3W)
  • Application: ITE (Commercial)
  • Power Rating: 3W
  • Number of Outputs: Two
  • Output Voltage 1: 15V
  • Output Voltage 2: -15V
  • Voltage Isolation: 1.5 kV
  • Output Current (per output): 100mA
  • Input Voltage: 18V to 36V
  • Protection: Overcurrent Protection (OCP), Short Circuit Protection (SCP)
  • Mounting Type: Through Hole
  • Package Size: 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm)
  • Operating Temperature: -40°C to 105°C
  • Efficiency: 81%
