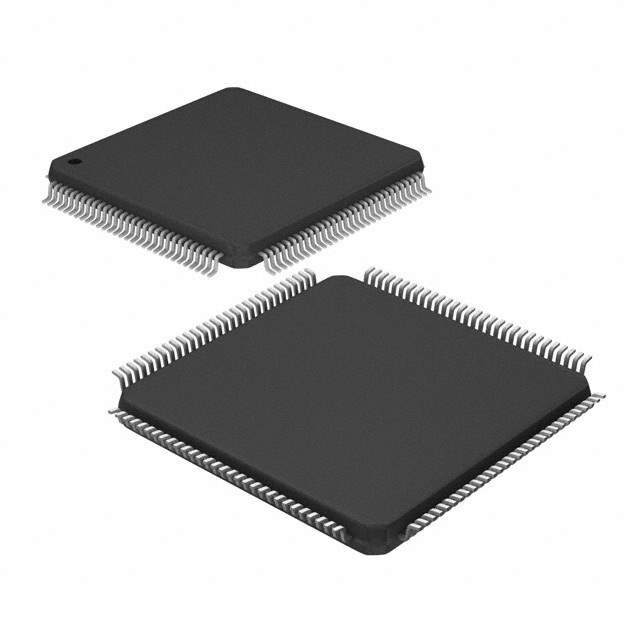

CY9AF156RAPMC-G-JNE2 Real Image
Same model may have multiple batches, images only for reference.

CY9AF156RAPMC-G-JNE2

Part No CY9AF156RAPMC-G-JNE2
Manufacturer Cypress Semiconductor Corp
Catalog Embedded - Microcontrollers
Description IC MCU 32BIT 544KB FLASH 120LQFP / ARM® Cortex®-M3 series Microcontroller IC 32-Bit Single-Core 40MHz 544KB (544K x 8) FLASH 120-LQFP (16x16)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr Cypress Semiconductor Corp
Series FM3 MB9A150RA
Package Tray
Core Processor ARM® Cortex®-M3
Core Size 32-Bit Single-Core
Speed 40MHz
Connectivity CSIO, EBI/EMI, I²C, SPI, UART/USART
Peripherals DMA, LVD, POR, PWM, WDT
Number of I/O 103
Program Memory Size 544KB (544K x 8)
Program Memory Type FLASH
RAM Size 64K x 8
Supply Voltage - Operating 1.65V ~ 3.6V
Data Converters A/D 24x12b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 120-LQFP
Supplier Device Package 120-LQFP (16x16)
Base Product Number CY9AF156
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Other Names 1534-1090,MB9AF156RAPMC-G-JNE2,MB9AF156RAPMC-G-JNE2-ND
Standard Package 840
Win Source Part Number 1054446-CY9AF156RAPMC-G-JNE2
Ultra Librarian 3D Model Ultra Librarian CY9AF156RAPMC-G-JNE2 CAD Model

Description

The CY9AF156RAPMC-G-JNE2 is a 120-LQFP package integrated circuit (IC) with a 32-bit single-core ARM® Cortex®-M3 core processor.

  • Series: FM3 MB9A150RA
  • Speed: 40MHz
  • Program Memory Size: 544KB (544K x 8)
  • Program Memory Type: FLASH
  • RAM Size: 64K x 8
  • Data Converters: A/D 24x12b
  • I/O: 103
  • Connectivity: CSIO, EBI/EMI, I²C, SPI, UART/USART
  • Peripherals: DMA, LVD, POR, PWM, WDT
  • Mounting: SMD (SMT)
  • Package: 120-LQFP
  • Supply Voltage: 1.65V ~ 3.6V
  • Temperature Range: -40°C ~ 85°C (TA)
  • Alternative Part: 1534-1090, MB9AF156RAPMC-G-JNE2 and MB9AF156RAPMC-G-JNE2-ND
