Same model may have multiple batches, images only for reference.

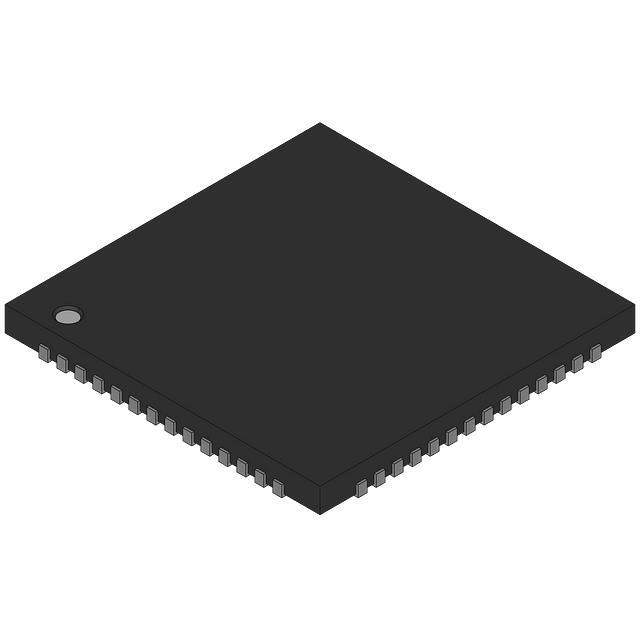

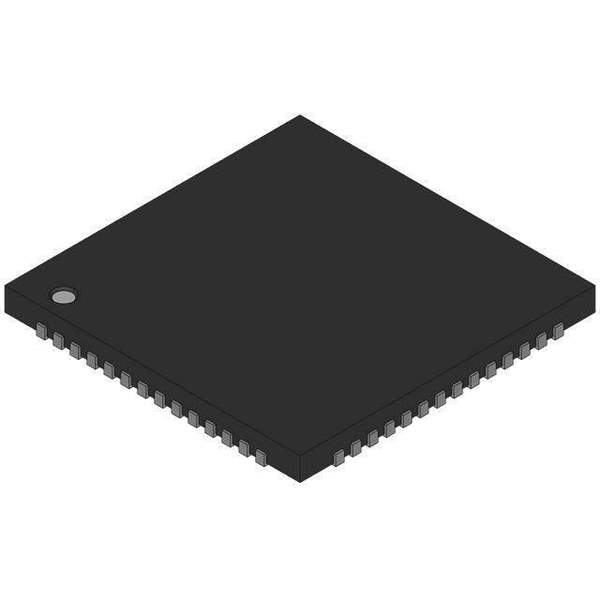

CYBL10463-56LQXI Real Image
Same model may have multiple batches, images only for reference.

CYBL10463-56LQXI

Part No CYBL10463-56LQXI
Manufacturer Cypress Semiconductor Corp
Catalog RF Transceiver ICs
Description IC RF TXRX+MCU BLUETOOTH 56UFQFN
Datasheet
CYBL10463-56LQXI Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Cypress Semiconductor Corp
Packaging Tray
Status Active
Type TxRx + MCU
RF Family/Standard Bluetooth
Protocol Bluetooth v4.1
Modulation GFSK
Frequency 2.4GHz
Data Rate (Max) 1Mbps
Power - Output 3dBm
Sensitivity -91dBm
Memory Size 128kB Flash, 8kB ROM, 16kB SRAM
Serial Interfaces I2C, SPI, UART
GPIO 36
Supply Voltage - Operating 1.8 V to 5.5 V
Current - Receiving 16.4mA to 21.5mA
Current - Transmitting 12.5mA to 20mA
Temperature Range - Operating -40°C to 105°C
Dimension 56-UFQFN Exposed Pad
Win Source Part Number 1031876-CYBL10463-56LQXI
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CYBL10463-56LQXI CAD Model

Description

The Cypress Semiconductor Corp CYBL10463-56LQXI is a TxRx + MCU type electronic component that operates on a 2.4GHz frequency with Bluetooth v4.1 protocol.

  • Frequency: 2.4GHz
  • Protocol: Bluetooth v4.1
  • Memory Size: 128kB Flash, 8kB ROM, 16kB SRAM
  • Power Output: 3dBm
  • Sensitivity: -91dBm
  • Maximum Data Rate: 1Mbps
  • Serial Interfaces: I2C, SPI, and UART
  • GPIO: 36
  • Operating Voltage: 1.8 V to 5.5 V
  • Operating Temperature: -40°C to 105°C
  • Package: 56-UFQFN Exposed Pad package
