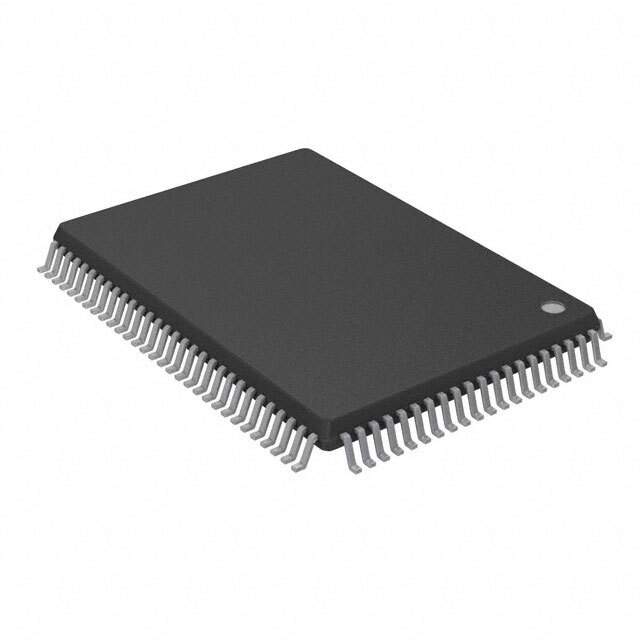

MB9AF316NAPF-G-JNE1 Real Image
Same model may have multiple batches, images only for reference.

MB9AF316NAPF-G-JNE1

Part No MB9AF316NAPF-G-JNE1
Manufacturer Cypress Semiconductor Corp
Catalog Embedded - Microcontrollers
Description MCU 32-bit FM3 ARM Cortex M3 RISC 512KB Flash 3.3V/5V 100-Pin PQFP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package PQFP
Core Architecture ARM
Data Bus Width 32 b
Frequency 40 MHz
Interface EBI/EMI, I2C, LIN, UART, USART, USB
Max Frequency 40 MHz
Maximum Operating Temperature 105 °C
Max Supply Voltage 5.5 V
Memory Size 512 kB
Memory Type FLASH
Min Operating Temperature -40 °C
Min Supply Voltage 2.7 V
Number of I/Os 83
Number of Pins 100
Oscillator Type Internal
Packaging Cut Tape
Peripherals DMA, LVD, POR, PWM, WDT
RAM Size 32 kB
REACH SVHC No SVHC
RoHS Compliant
Win Source Part Number 1076329-MB9AF316NAPF-G-JNE1
Categories Embedded - Microcontrollers
Manufacturer Cypress Semiconductor Corp
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian MB9AF316NAPF-G-JNE1 CAD Model

Description

The MB9AF316NAPF-G-JNE1 is an embedded microcontroller manufactured by Cypress Semiconductor Corp.

  • Packaging: Cut tape
  • Mounting: SMD (SMT)
  • Frequency: 40 MHz
  • Memory Size: 512 kB
  • Interface: EBI/EMI, I2C, LIN, UART, USART, USB
  • RAM Size: 32 kB
  • Oscillator Type: Internal
  • Maximum Operating Temperature: 105°C
  • Core Architecture: ARM
  • I/Os: 83
