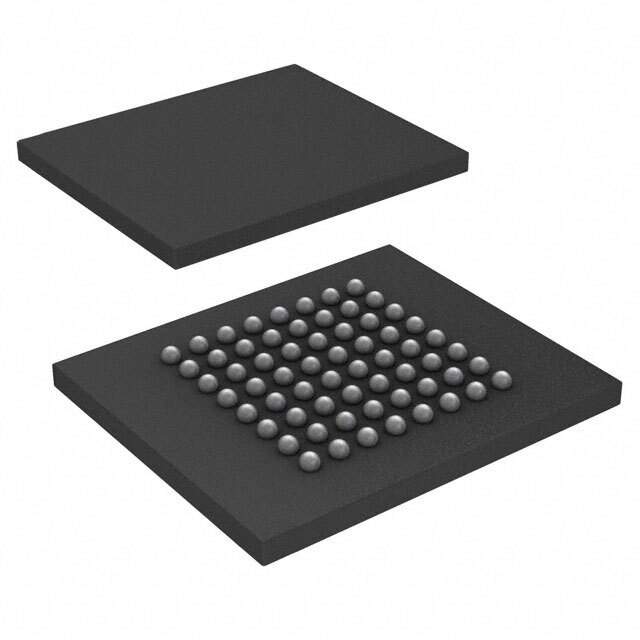

S29AL016J70FFI013 Real Image
Same model may have multiple batches, images only for reference.

S29AL016J70FFI013

Part No S29AL016J70FFI013
Manufacturer Cypress Semiconductor Corp
Catalog Unclassified Memory
Description IC FLASH 16MBIT PARALLEL 64FBGA / FLASH - NOR Memory IC 16Mb (2M x 8, 1M x 16) Parallel 70 ns 64-FBGA (13x11)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Memory
Mfr Cypress Semiconductor Corp
Series AL-J
Package Tape & Reel (TR)
Product Status Obsolete
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH - NOR
Memory Size 16Mb (2M x 8, 1M x 16)
Memory Interface Parallel
Write Cycle Time - Word, Page 70ns
Access Time 70 ns
Voltage - Supply 2.7V ~ 3.6V
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 64-LBGA
Supplier Device Package 64-FBGA (13x11)
Standard Package 2,200
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.32.0071
Win Source Part Number 1255746-S29AL016J70FFI013
Ultra Librarian 3D Model Ultra Librarian S29AL016J70FFI013 CAD Model

Description

The S29AL016J70FFI013 is a 16Mb flash memory integrated circuit from Cypress Semiconductor Corp.

  • Memory Type: Non-volatile
  • Voltage Supply Range: 2.7V to 3.6V
  • Memory Interface: parallel
  • Access Time: 70 ns
  • Package: 64-LBGA
  • Temperature Range: -40°C to 85°C
  • Memory Size: 16Mb (2M x 8, 1M x 16)
  • Memory Format: FLASH
  • Write Cycle Time: 70 ns
  • Series: AL-J
  • Status: Obsolete
