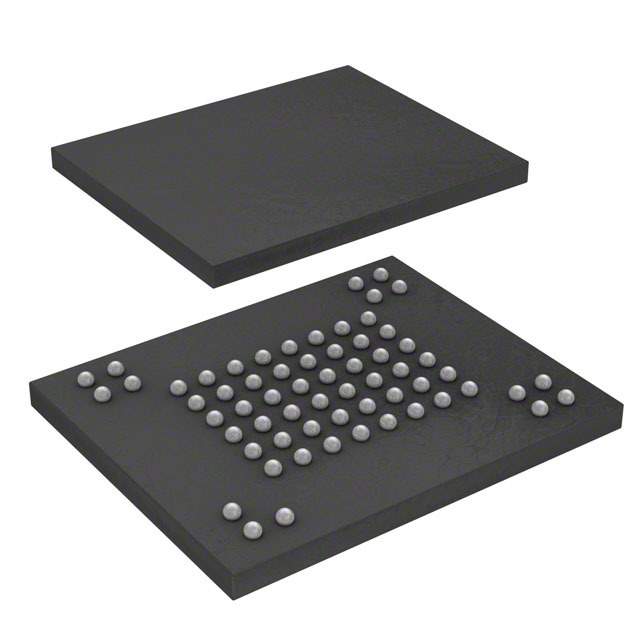

The S34ML04G200BHI003 is a 4-Gigabit (512M x 8) Single-Level Cell (SLC) NAND Flash memory device manufactured by Cypress Semiconductor (now Infineon). It is designed for high-performance, high-reliability data storage in embedded systems.

Applications:

• Solid State Drives (SSDs): Used as boot or cache memory in low-capacity SSDs.
• Embedded Systems: Employed in industrial control systems, networking equipment, and automotive applications for storing firmware and data.
• Data Loggers: Integrated into data loggers for reliable storage of sensor data and other information.
• Medical Devices: Utilized in medical devices for storing patient data and application software.
• Handheld Devices: Found in portable devices such as GPS units and barcode scanners for storing maps, firmware, and user data.

Features:

• 4-Gigabit (512M x 8) Capacity: Provides a large storage capacity for embedded applications.
• Single-Level Cell (SLC) Technology: Offers high endurance and data retention compared to multi-level cell (MLC) NAND flash.
• Page Size: Typically features a page size of 2 KB + 64 bytes for efficient data access.
• Block Size: Organized into blocks of 64 pages each for efficient erase operations.
• Fast Program and Erase Times: Enables quick data writing and erasing operations.
• High Endurance: Supports a high number of program/erase cycles, ensuring long-term reliability.
• Operating Voltage: Operates at a standard 3.3V supply voltage.

Benefits:

• High Reliability: SLC technology ensures high data integrity and long-term data retention.
• Fast Performance: Quick program and erase times improve system responsiveness.
• Large Capacity: 4-Gigabit capacity provides ample storage space for embedded applications.
• Long Endurance: High endurance rating ensures reliable operation over the device's lifetime.
• Cost-Effective: Provides a cost-effective storage solution for embedded systems.

Additional Details:

The S34ML04G200BHI003 typically features a standard NAND flash interface for easy integration with microcontrollers and processors. It is available in various package options, such as TSOP and BGA. Refer to the Cypress/Infineon datasheet for specific electrical characteristics, timing diagrams, and application notes.
