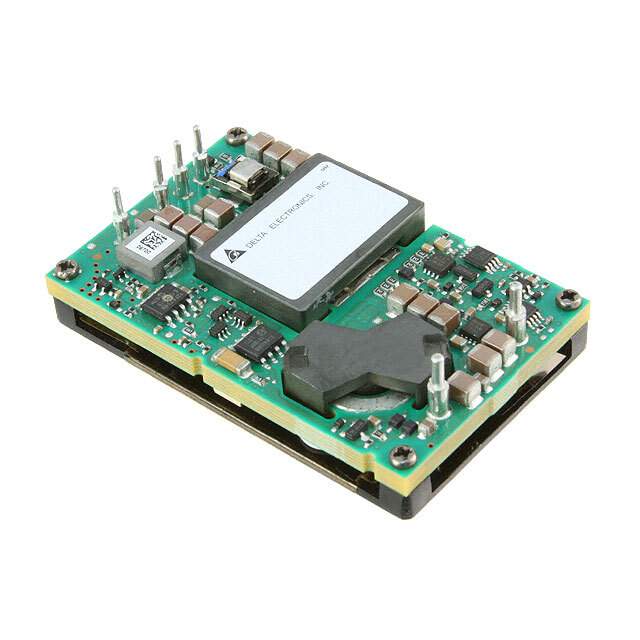

Same model may have multiple batches, images only for reference.

Q48SK12025NRFA

Name: Q48SK12025NRFA
Brand: Delta Electronics
SKU: 1175122
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	Q48SK12025NRFA
Manufacturer	Delta Electronics
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 12V 300W / Isolated Module DC DC Converter 1 Output 12V 25A 36V - 75V Input
Datasheet	Q48SK12025NRFA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Delta Electronics
Series	Delphi Q48SK (300W)
Package	Tray
Product Status	Obsolete
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	36V
Voltage - Input (Max)	75V
Voltage - Output 1	12V
Current - Output (Max)	25A
Power (Watts)	300 W
Voltage - Isolation	2.25 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, OVP, UVLO
Temperature Range - Operating	-40°C ~ 118°C
Efficiency	95.2%
Mounting Type	Through Hole
Package / Case	6-DIP Module, 1/4 Brick
Dimension	2.28" L x 1.45" W x 0.43" H (57.9mm x 36.8mm x 10.9mm)
Control Features	Enable, Active Low
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	941-1057
Standard Package	90
Win Source Part Number	1175122-Q48SK12025NRFA
Ultra Librarian 3D Model	Ultra Librarian Q48SK12025NRFA CAD Model

Alternative Products

Description

The Delta Electronics Q48SK12025NRFA is an isolated module type DC-DC converter with a power rating of 300W and a voltage isolation of 2.25kV.

Features: Remote on/off, OCP, OTP, OVP, and UVLO
Application: ITE (Commercial)
Packaging: Tray with 90 units
Control Feature: Enable, active low
Current Output: 25A
Voltage Input: 36V to 75V
Voltage Output 1: 12V
Efficiency: 95.2%
Mounting Type: Through-Hole
Package/Case: 6-DIP Module, 1/4 Brick
Operating Temperature: -40°C to 118°C
ECCN: EAR99
HTSUS: 8504.40.9580
Status: Obsolete
