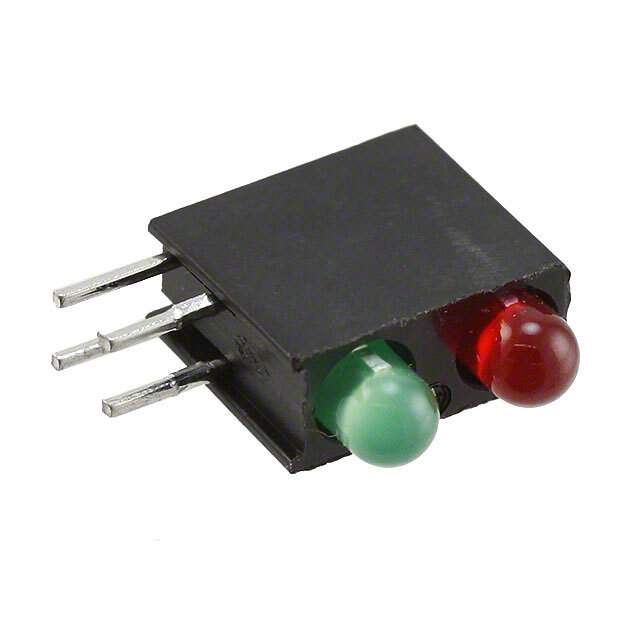

5530212200F Real Image
Same model may have multiple batches, images only for reference.

5530212200F

Part No 5530212200F
Manufacturer Dialight
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED CBI 3MM BI-LVL RED/GRN DIFF / LED Circuit Board Indicator LED Circuit Board Indicator 2 High Green (x 1), Red (x 1) Diffused, Tinted 1.9V Green, 1.7V Red 2mA Through Hole, Right Angle
Datasheet
5530212200F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Manufacturer Dialight
Packaging Bulk
Color Green (x 1), Red (x 1)
Wavelength - Peak 565nm, 635nm
Configuration 2 High
Current 2mA
Millicandela Rating 1.6mcd
Viewing Angle 60°
Lens Type Diffused, Tinted
Voltage Rating 1.9V Green, 1.7V Red
Mounting Through Hole, Right Angle
Base Product Number 5530212
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Part Number 553-0212-200F,350-2715,553-0212-200F-ND
Standard Package 50
Win Source Part Number 1331724-5530212200F
Ultra Librarian 3D Model Ultra Librarian 5530212200F CAD Model

Description

The Dialight electronic component is a LED circuit board indicator with a 2 high configuration.

  • Colors: Green and red
  • Voltage Rating: 1.9V for green and 1.7V for red
  • Standard Package: 50 pieces
  • Mounting: Through hole, right angle
  • Viewing Angle: 60 degrees
  • Millicandela Rating: 1.6mcd
  • Wavelength-Peak: 565nm for green and 635nm for red
  • Current: 2mA
  • Lens Type: Diffused, tinted
  • REACH: Unaffected
  • ROHS: ROHS3 compliant
