Same model may have multiple batches, images only for reference.

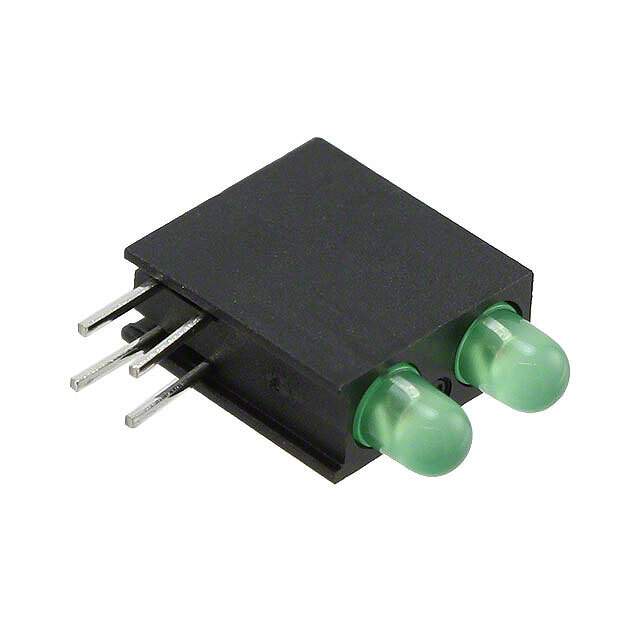

5530222200F Real Image
Same model may have multiple batches, images only for reference.

5530222200F

Part No 5530222200F
Manufacturer Dialight
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED CBI 3MM BI-LVL GRN/GRN DIFF / LED Circuit Board Indicator LED Circuit Board Indicator 2 High Green (x 2) Diffused, Tinted 1.9V 20mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle
Datasheet
5530222200F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Dialight
Series 553
Package Bulk
Color Green (x 2)
Wavelength - Peak 565nm
Configuration 2 High
Current 20mA
Millicandela Rating 1.6mcd
Viewing Angle 60°
Lens Type Diffused, Tinted
Lens Style Round with Domed Top
Lens Size 3mm, T-1
Voltage Rating 1.9V
Mounting Type Through Hole, Right Angle
Base Product Number 5530222
Standard Package 50
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
California Prop 65 Warning Information
Win Source Part Number 1351152-5530222200F
Ultra Librarian 3D Model Ultra Librarian 5530222200F CAD Model

Description

The 5530222 series circuit board indicator is a high-quality optoelectronic component from Dialight.

  • Application: Circuit board indicators, arrays, light bars, and bar graphs
  • Packaging: Bulk
  • Voltage Rating: 1.9V
  • Current Rating: 20mA
  • Millicandela Rating: 1.6mcd
  • Peak Wavelength: 565nm
  • Viewing Angle: 60 degrees
  • Lens Type: Diffused and tinted
  • Lens Style: Round domed top
  • Lens Size: 3mm, T-1
  • ECCN: EAR99
  • HTSUS Code: 8541.41.0000
