Same model may have multiple batches, images only for reference.

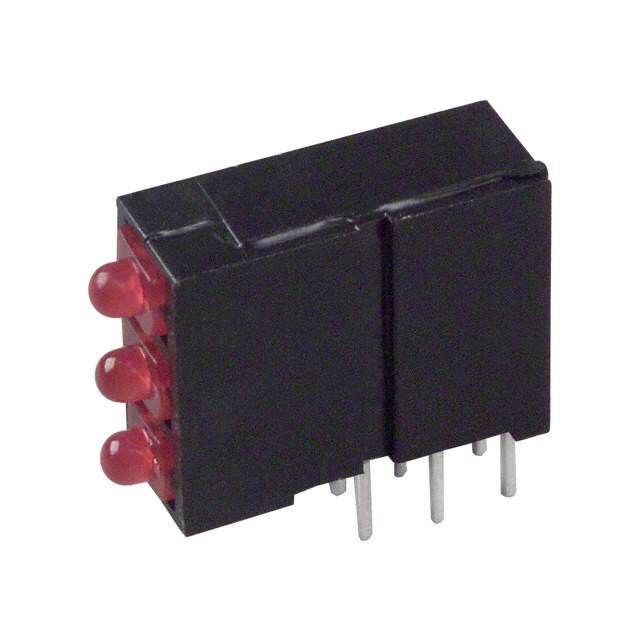

5700100111F Real Image
Same model may have multiple batches, images only for reference.

5700100111F

Part No 5700100111F
Manufacturer Dialight
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED 3HI 2MM RED / LED Circuit Board Indicator LED Circuit Board Indicator 3 High Red (x 3) Diffused, Tinted 2V 20mA Round with Domed Top 2.00mm Dia Through Hole, Right Angle
Datasheet
5700100111F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Manufacturer Dialight
Packaging Bulk
Color Red (x 3)
Wavelength - Peak 635nm
Configuration 3 High
Current 20mA
Millicandela Rating 12.6mcd
Viewing Angle 38°
Lens Type Diffused, Tinted
Lens Style Round with Domed Top
Lens Size 2.00mm Dia
Voltage Rating 2V
Mounting Through Hole, Right Angle
Base Product Number 5700100
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Part Number 570-0100-111F,350-1807
Standard Package 25
Win Source Part Number 1331739-5700100111F
Ultra Librarian 3D Model Ultra Librarian 5700100111F CAD Model

Description

The Dialight 1331739-5700100111F is a high-quality LED circuit board indicator that offers reliable performance.

  • Packaging: Bulk
  • Standard Package: 25
  • Configuration: 3 high
  • Viewing Angle: 38 degrees
  • Millicandela Rating: 12.6mcd
  • Wavelength-Peak: 635nm
  • Current: 20mA
  • Lens Type: Diffused, tinted
  • Lens Style: Round with a domed top
  • Lens Size: 2.00mm Dia
  • ROHS: ROHS3 compliant
  • REACH: Unaffected
  • ECCN: EAR99
