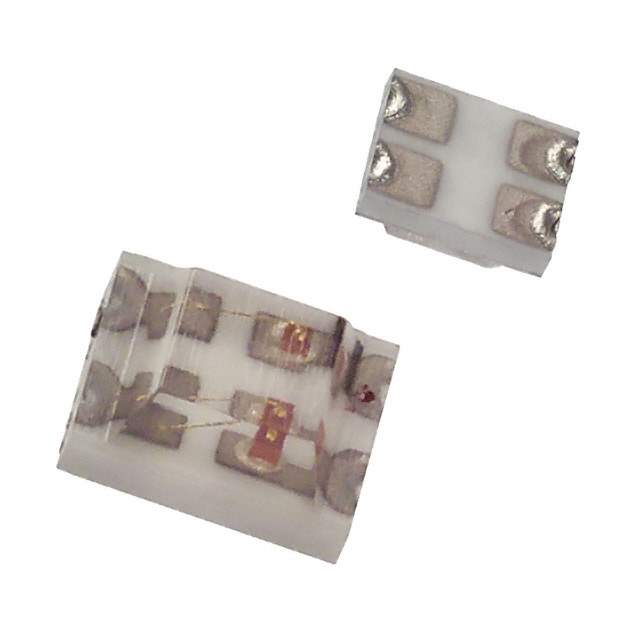

597-7721-107F Real Image
Same model may have multiple batches, images only for reference.

597-7721-107F

Part No 597-7721-107F
Manufacturer Dialight
Catalog Optics - LEDs - Light Pipes
Description LED Bi-Color Green/Yellow 565Nm/585Nm 4-Pin Smd T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Termination SMD/SMT
Color Green, Yellow
Depth 3.05 mm
Dominant Wavelength 585 nm
Forward Current 25 mA
Forward Voltage 2.1 V
Height 1.02 mm
Illumination Color Green, Yellow
Lead Free Yes
Length 2.62 mm
Lens Color Colorless
Lens Style Rectangular
Lens Transparency Clear
Luminous Intensity 8 mcd
Maximum Operating Temperature 75 °C
Min Operating Temperature -25 °C
Mount Surface Mount
Number of Elements 2
Number of LEDs 2
Number of Pins 4
Packaging Cut Tape
Radiation Hardening No
REACH SVHC No SVHC
Reverse Voltage 4 V
RoHS Compliant
Test Current 20 mA
Viewing Angle 170 °
Voltage Rating (DC) 2.1 V
Wavelength 565 nm
Width 2.54 mm
Win Source Part Number 1039416-597-7721-107F
Categories Optics - LEDs - Light Pipes
Manufacturer Dialight
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 597-7721-107F CAD Model

Description

The Dialight LED light pipe is a high-quality optoelectronic component that is designed for use in various electronic applications.

  • Packaging: cut tape
  • Length: 2.62mm
  • Width: 2.54mm
  • Termination Style: SMD/SMT
  • Mounting Type: SMD (SMT)
  • Color: green and yellow
  • Forward Voltage: 2.1V
  • Luminous Intensity: 8mcd
  • Forward Current: 25mA
  • Reverse Voltage: 4V
  • Viewing Angle: 170 degrees
  • Lens Color: colorless
  • Lens Transparency: clear lens transparency
  • Lens Style: rectangular
  • Maximum Operating Temperature: 75 degrees Celsius
  • Minimum Operating Temperature: -25 degrees Celsius
