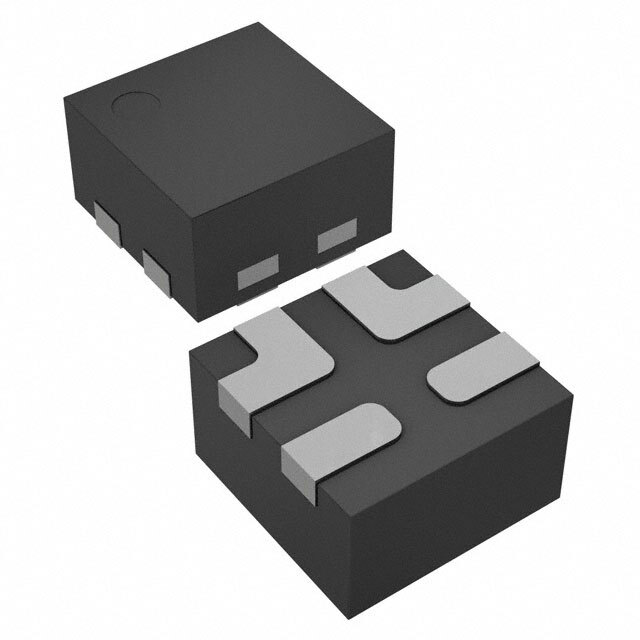

The SLG59M1442V is a high-performance, single-channel power switch manufactured by Dialog Semiconductor (now Renesas). This device is designed for load switching applications, providing a compact and efficient solution for power management.

Applications:

• Load switching in portable devices
• Power management in SSDs
• Power distribution in notebooks and tablets
• Battery-powered applications
• Hot-swap applications

Features:

• Low on-resistance (Rds(on)): typically 11 mΩ at VGS = 4.5V
• Input Voltage Range: 1.5V to 5.5V
• Continuous Current: up to 6A
• Adjustable output slew rate
• Over-temperature protection
• Under-voltage lockout (UVLO)
• Short-circuit protection
• Small footprint package

Benefits:

• High Efficiency: Low on-resistance minimizes power loss, resulting in high efficiency and extended battery life.
• Compact Design: Small footprint allows for integration into space-constrained applications.
• Robust Protection: Over-temperature and short-circuit protection enhance system reliability.
• Adjustable Slew Rate: The adjustable slew rate minimizes inrush current and voltage ringing during switching events.
• Wide Operating Voltage Range: The wide operating voltage range allows use in diverse applications.

Additional Details:

The SLG59M1442V utilizes advanced MOSFET technology to achieve high performance and efficiency. It is designed to protect the load from over-current and over-temperature conditions. The adjustable slew rate is controlled via an external resistor. The under-voltage lockout (UVLO) function prevents the device from operating when the input voltage is below a certain threshold, preventing damage to the load. The device is RoHS compliant. It is typically used in applications that require high current switching with minimal power loss. The thermal performance of the package is optimized for efficient heat dissipation.
