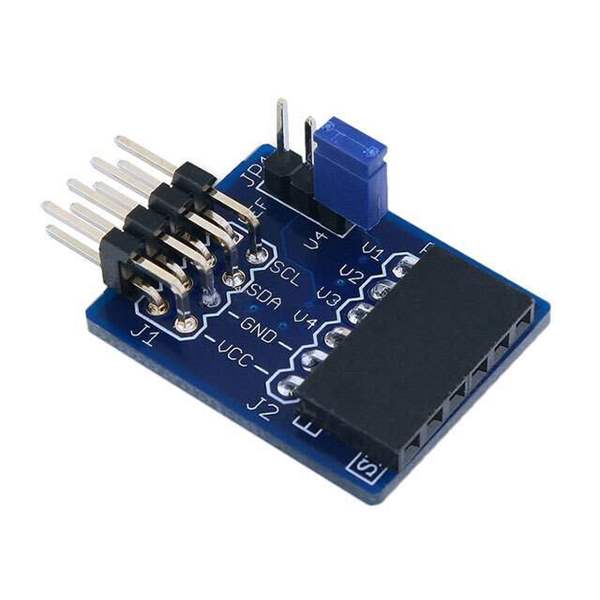

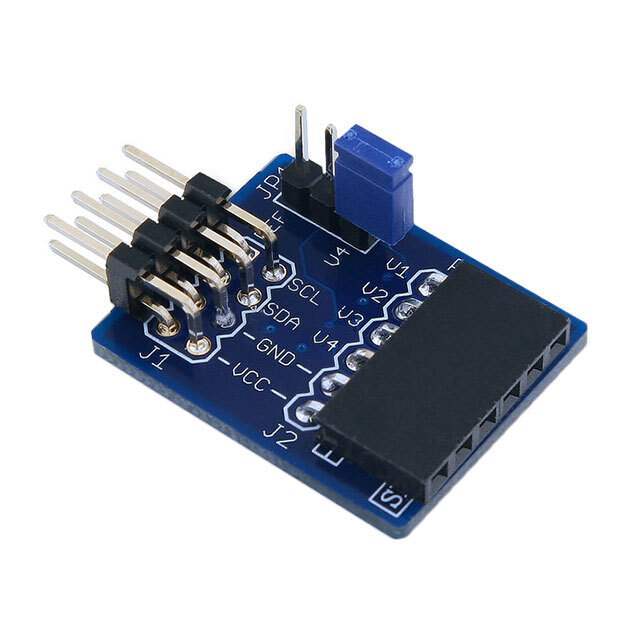

410-217 Digilent, Inc.
Same model may have multiple batches, images only for reference.

410-217

Part No 410-217
Manufacturer Digilent, Inc.
Catalog Evaluation Boards - Expansion Boards
Description BOARD PMODAD2 FOR AD7991
Datasheet
410-217 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1209705-410-217
Manufacturer Digilent, Inc.
Category Development Boards, Kits, Programmers -Evaluation Boards- Expansion Boards, Daughter Cards
Package Box
Product Status Obsolete
Platform Pmod™
Type Data Acquisition
Function Analog to Digital Converter (ADC)
Utilized IC / Part AD7991
Contents Board(s)
Ultra Librarian 3D Model Ultra Librarian 410-217 CAD Model

Description

The PmodAD2 communicates with the host board via the I²C protocol. System boards are able to call the Pmod by sending out the device address of 0b0101000 followed by the appropriate read or write bit. If a write bit is chosen, users may then configure the on-board chip to only use certain channels or may immediately start reading the 12 bits of data from the 16-bit data register if the read bit is sent.
