The 1N4148WT-7 is a high-speed switching diode that has become an industry standard due to its reliable performance and versatility. Manufactured by Diodes Incorporated, a leading company in the semiconductor market, this diode is designed for fast switching applications and is housed in a small SOD-523 package, making it ideal for high-density circuit boards where space is at a premium.

Key Features

• Fast Switching Speed: With a reverse recovery time of less than 4ns, the 1N4148WT-7 ensures high efficiency in switching circuits.
• Low Capacitance: The device offers low junction capacitance, which is beneficial in high-frequency applications.
• High Conductance: With a forward current of 150mA, the diode provides excellent conductance for a wide range of applications.
• Low Leakage Current: The low leakage current of the 1N4148WT-7 minimizes power loss and improves the overall efficiency of the circuit.
• Compact SOD-523 Package: The small form factor of the SOD-523 package allows for high-density mounting and is suitable for portable and space-constrained applications.

Applications

The 1N4148WT-7 is commonly used in a variety of applications that require fast switching and high reliability. These applications include:

• Switching power supplies
• Logic circuits
• Signal processing
• High-speed data lines
• Portable and battery-powered devices

Quality and Reliability

Diodes Incorporated is committed to delivering high-quality components. The 1N4148WT-7 is no exception and is subjected to rigorous testing and quality control procedures to ensure its performance and reliability. This diode is RoHS compliant, indicating that it is manufactured with environmentally safe materials.

Ordering Information

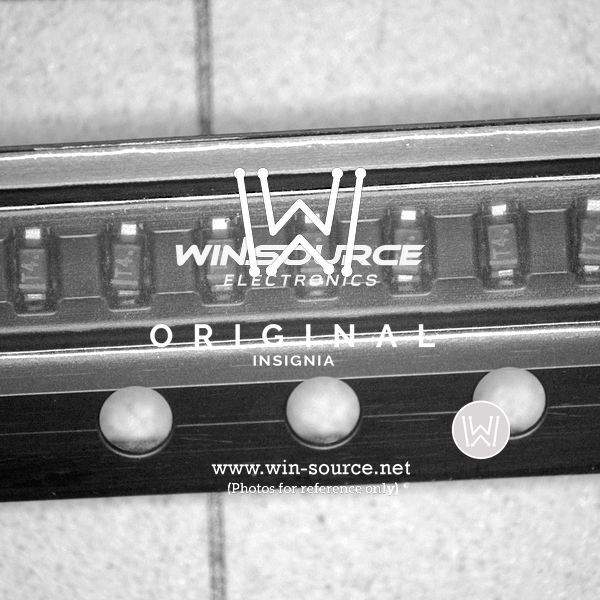

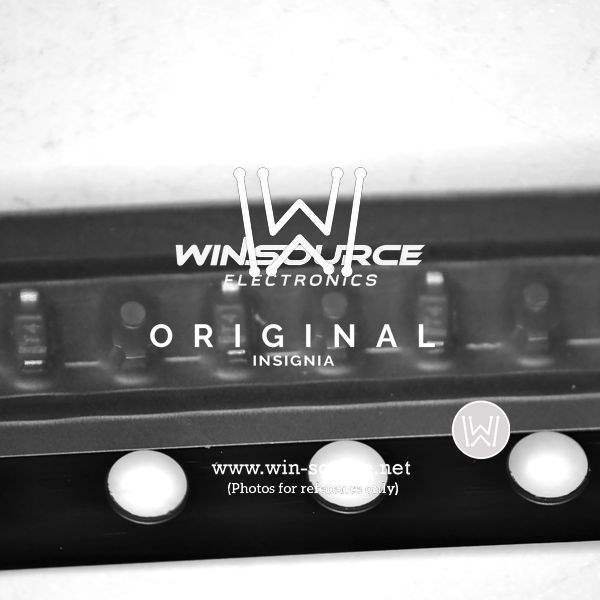

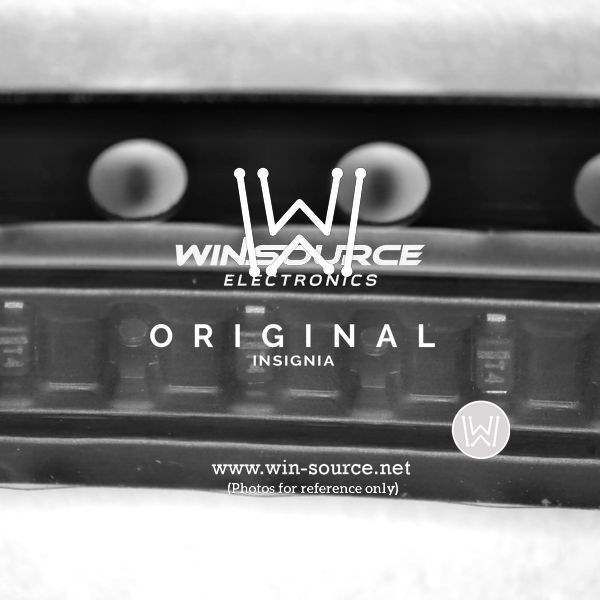

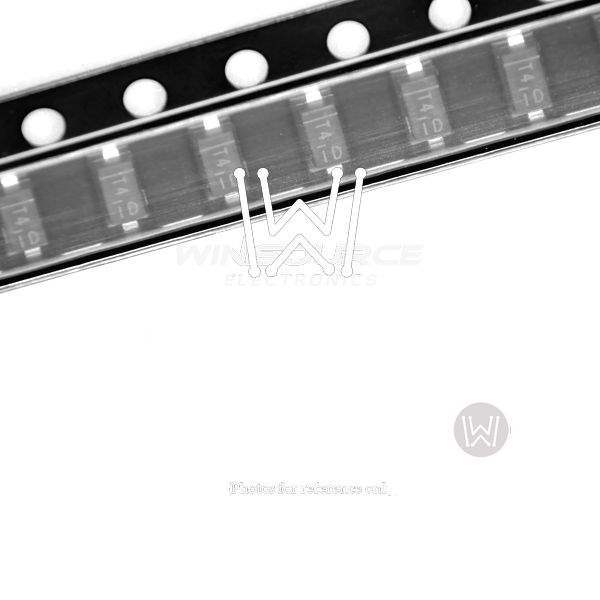

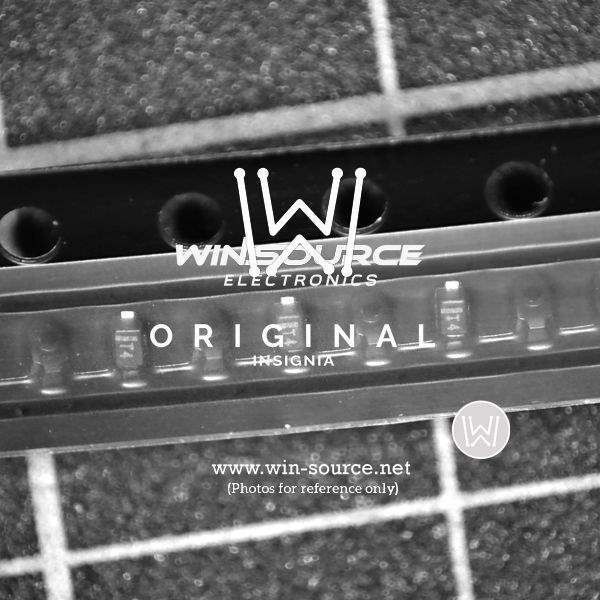

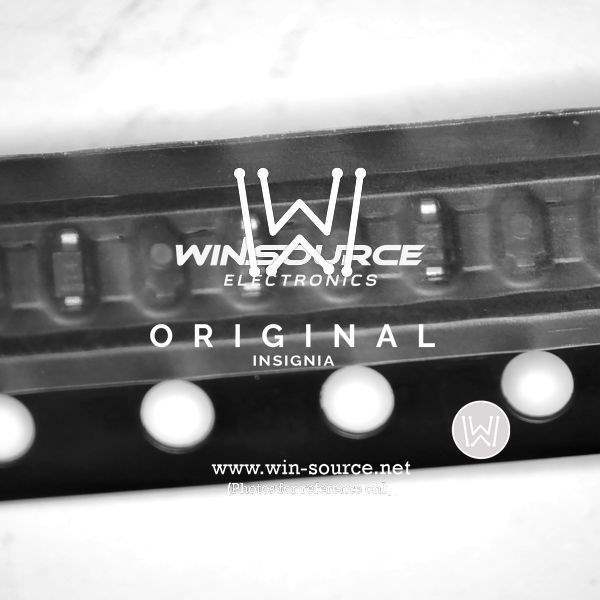

The 1N4148WT-7 diode is available in tape and reel packaging, facilitating easy integration into automated manufacturing processes. For ordering, reference the complete part number 1N4148WT-7 to ensure the correct product specification is received.
