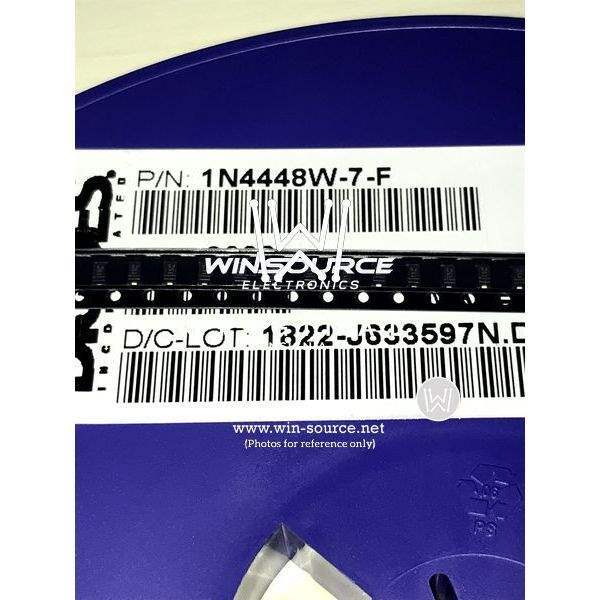

1N4448W-7-F

Part No 1N4448W-7-F
Manufacturer Diodes Incorporated
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 75V 250MA SOD123
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Diodes Incorporated
Packaging Reel - TR
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 75V
Current - Average Rectified (Io) 250mA
Voltage - Forward (Vf) (Max) @ If 1.25V @ 150mA
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 4ns
Current - Reverse Leakage @ Vr 2.5μA @ 75V
Capacitance @ Vr, F 4pF @ 0V, 1MHz
Mounting SMD (SMT)
Case / Package SOD-123
Operating Temperature - Junction -65°C to 150°C
Win Source Part Number 005301-1N4448W-7-F
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian 1N4448W-7-F CAD Model

Description

Product Overview: 1N4448W-7-F by Diodes Incorporated

The 1N4448W-7-F is a high-speed switching diode engineered by Diodes Incorporated, a renowned manufacturer in the semiconductor industry. This product is specifically designed for applications requiring efficient and reliable switching performance. It is a surface-mount device (SMD) that comes in a compact SOD-123 package, making it suitable for high-density circuit boards where space is at a premium.

Key Features

  • Fast Switching Speed: The 1N4448W-7-F boasts a fast reverse recovery time, which is essential for high-speed switching applications. This characteristic ensures minimal switching losses and improved overall efficiency.
  • Low Forward Voltage Drop: With a low forward voltage drop, this diode helps in reducing power consumption and heat dissipation, which can be critical in power-sensitive designs.
  • High Reliability: Diodes Incorporated is known for its commitment to quality, and the 1N4448W-7-F is no exception. It is designed to meet stringent reliability standards, ensuring a long operational life and consistent performance.
  • Surface-Mount Design: The SOD-123 package is optimized for automated assembly processes, making it easy to integrate into various PCB designs without the need for through-hole mounting.
  • Lead-Free and RoHS Compliant: In line with modern environmental standards, this diode is lead-free and complies with the RoHS directive, making it suitable for use in eco-friendly products.

Applications

The versatile nature of the 1N4448W-7-F makes it an excellent choice for a wide range of electronic applications, including:

  • High-speed logic circuits
  • Power management systems
  • Switching power supplies
  • Conversion circuits
  • Communication devices
  • Portable and compact electronic devices

With its combination of fast switching capabilities, low power loss, and compact footprint, the 1N4448W-7-F from Diodes Incorporated stands out as a reliable component for designers and engineers looking to optimize their high-speed circuit designs. Its robustness and compliance with environmental standards further ensure that it meets both the technical and ecological demands of the contemporary electronics market.
