Diodes Incorporated 74LVC1G126Z-7 Single Buffer/Line Driver with 3-State Output

The 74LVC1G126Z-7 is a high-performance, single-buffer/line driver with a 3-state output from Diodes Incorporated, designed to support the needs of high-speed signal propagation and data buffering in a variety of digital applications. This component is part of the 74LVC family, which is known for its low-voltage operation and compatibility with TTL levels.

With its advanced 5V tolerant inputs, the 74LVC1G126Z-7 can be used in mixed-voltage environments and interfaces seamlessly with both 3.3V and 5V systems. This feature ensures that the device can be integrated into legacy systems without the need for additional level shifting, making it a versatile choice for system upgrades and new designs alike.

The device operates over a wide voltage range from 1.65V to 5.5V, providing the flexibility to work in various power environments and making it suitable for battery-operated and portable applications. Its low power consumption is an asset for power-sensitive designs, ensuring efficient operation without compromising performance.

One of the key features of the 74LVC1G126Z-7 is its 3-state output, which allows the output to be set to a high impedance state. This is particularly useful in bus-oriented systems where multiple drivers can share the same output lines. The output enable (OE) input controls the state of the output, offering designers control over the timing and flow of data within their circuits.

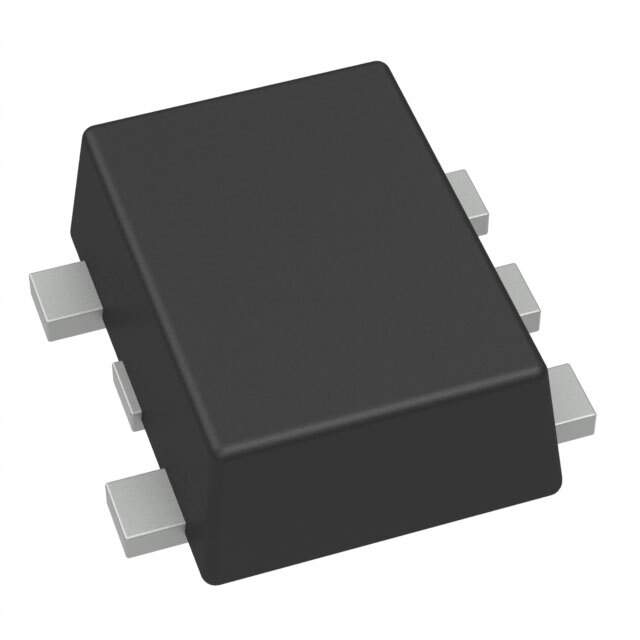

The device is housed in a small SOT-523 package, which is ideal for space-constrained applications. Its compact footprint allows for high-density board layouts, thereby conserving valuable board space in complex electronic systems.

Overall, the Diodes Incorporated 74LVC1G126Z-7 is a reliable and efficient solution for digital buffering and driving applications. Its compatibility with various voltage levels, low power consumption, and 3-state output functionality make it a highly adaptable component suitable for a wide range of electronic designs.
