Diodes Incorporated 74LVC2G00HK3-7 Dual 2-Input NAND Gate

The 74LVC2G00HK3-7 is a high-performance, dual 2-input NAND gate integrated circuit from Diodes Incorporated, designed to operate at a wide voltage range with low power consumption. This logic gate is part of the 74LVC family, which is known for its low-voltage operation and compatibility with mixed-voltage systems. The 74LVC2G00HK3-7 is a versatile component suitable for a variety of digital applications.

Key Features:

• Wide Operating Voltage: The device supports a wide voltage range from 1.65V to 5.5V, making it suitable for interfacing with both 3.3V and 5V logic levels.
• Low Power Consumption: It is designed for low power consumption, with a typical quiescent current of only 1µA, which is ideal for battery-operated and power-sensitive applications.
• High Speed: The 74LVC2G00HK3-7 offers high-speed performance with a propagation delay of typically 3.7ns at 3.3V, ensuring quick response times in critical circuits.
• Logic Level Translation: Its ability to operate at different voltages makes it suitable for translating logic levels between different operating voltages within a system.
• Multiple Configurations: The dual 2-input configuration allows for multiple logic functions to be implemented within a single package, saving space on the PCB.

Applications:

• Smartphones
• Personal computers
• Embedded systems
• Portable electronics
• Signal processing

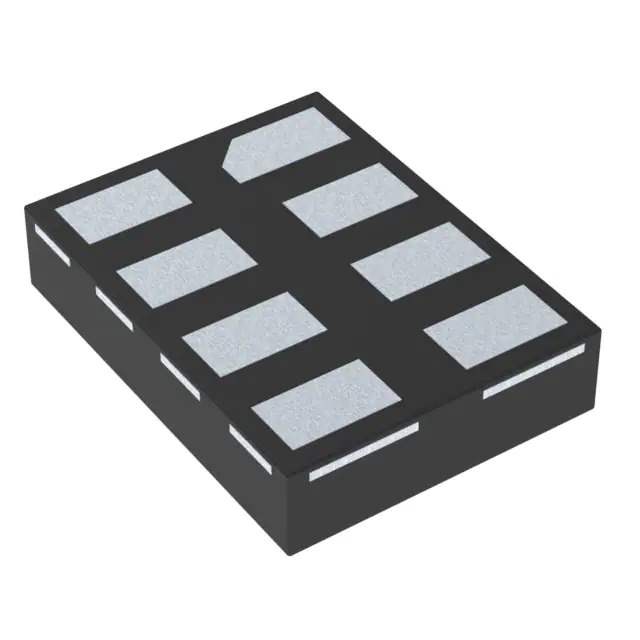

The 74LVC2G00HK3-7 is provided in a compact SOT-363 package, which minimizes the footprint on printed circuit boards and is well-suited for space-constrained applications. Its robust design ensures reliable operation even under varying environmental conditions. Whether you are designing consumer electronics, communication devices, or complex computing systems, the 74LVC2G00HK3-7 from Diodes Incorporated is an excellent choice for implementing fundamental logic functions with efficiency and reliability.

With its combination of low power consumption, wide voltage range compatibility, and high-speed operation, the 74LVC2G00HK3-7 is engineered to meet the demands of modern electronic designs.
