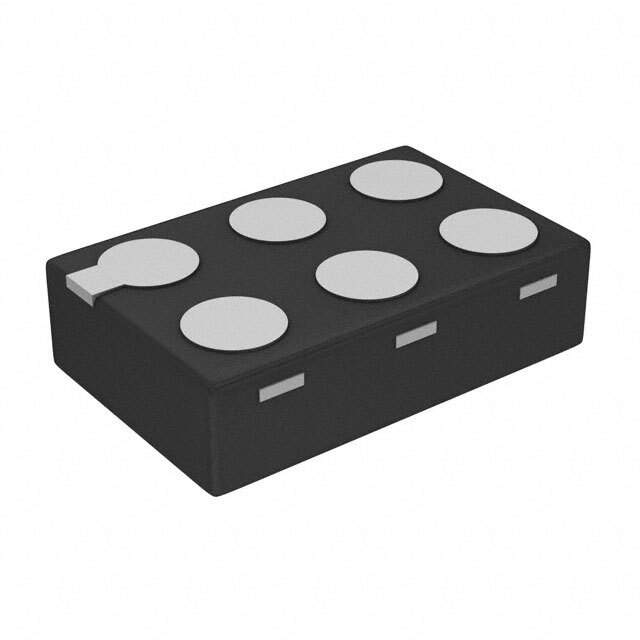

The 74LVC2G14FX4-7 is a high-performance, dual inverting Schmitt-trigger manufactured by Diodes Incorporated. This integrated circuit (IC) is designed to operate from a 1.65V to 5.5V VCC supply, making it suitable for a wide range of applications, including those that require interfacing with 5V systems and lower voltage logic circuits. Its low voltage range also ensures compatibility with modern low voltage microprocessors and microcontrollers.

Key Features

• Logic Type: Inverting Schmitt Trigger
• Number of Circuits: 2
• Input Voltage: 1.65V to 5.5V
• Output Current: ±24mA
• Propagation Delay Time: 3.7ns at 5V
• Operating Temperature: -40°C to +125°C
• Mounting Type: Surface Mount
• Package / Case: 6-XFDFN

Performance and Quality

The 74LVC2G14FX4-7 ensures high-speed operation with a typical propagation delay time of 3.7ns when supplied with 5V. The device also features low power consumption, which is essential for battery-operated and power-sensitive applications. The Schmitt-trigger action at the input provides a hysteresis that enhances noise immunity and transforms slowly changing input signals into sharply defined jitter-free output signals, contributing to the reliability of the system it is integrated into.

Applications

Due to its versatile features, the 74LVC2G14FX4-7 is ideal for use in a broad array of applications. These include:

• Wave shaping and noise filtering
• Logic level translation for mixed-voltage systems
• Signal processing
• Glitch-free power-up/power-down circuits
• Portable and battery-powered electronics

Environmental and Regulatory Compliance

The device is compliant with RoHS (Restriction of Hazardous Substances) directives, ensuring that it meets global environmental standards and is free from harmful substances. Additionally, the 74LVC2G14FX4-7 is characterized for operation from -40°C to +125°C, providing a reliable performance across a wide temperature range.

Whether you are designing consumer electronics, industrial control systems, or sophisticated computing platforms, the 74LVC2G14FX4-7 from Diodes Incorporated offers the performance and flexibility required to meet your design needs.
