Product Overview: AH1802-FY4G-7 from Diodes Incorporated

The AH1802-FY4G-7 is a high-performance, micropower Omnipolar Hall Effect switch IC fabricated by Diodes Incorporated, a leading manufacturer in the semiconductor market. This device is designed for battery-powered consumer to industrial applications that require a solid-state solution with low power consumption and reliable high-speed switching capabilities.

Key Features

• Sensitivity: The AH1802-FY4G-7 is sensitive to both north and south poles, providing flexibility in magnetic actuation and simplifying product design.
• Power Efficiency: With an average supply current of only 24µA, this device is optimized for energy-saving applications, making it ideal for battery-operated devices.
• Supply Voltage Range: It operates over a wide supply range from 2.5V to 5.5V, accommodating various application requirements.
• Output Type: The open-drain output of the AH1802-FY4G-7 can be easily interfaced with a variety of microcontrollers and is suitable for connecting to external resistors for custom configurations.
• High Switching Speed: The device offers a fast response time, which is crucial for applications that require quick signal processing.
• Robustness: It is designed to withstand harsh operating conditions and is resistant to physical stress, providing a reliable solution across a range of applications.
• Chopper-Stabilized Design: This feature ensures minimal drift over temperature and eliminates the need for external capacitors, reducing system complexity and cost.

Applications

• Portable and battery-powered equipment
• Contactless switches in consumer electronics
• Position and proximity sensing
• Flow meters
• Industrial automation

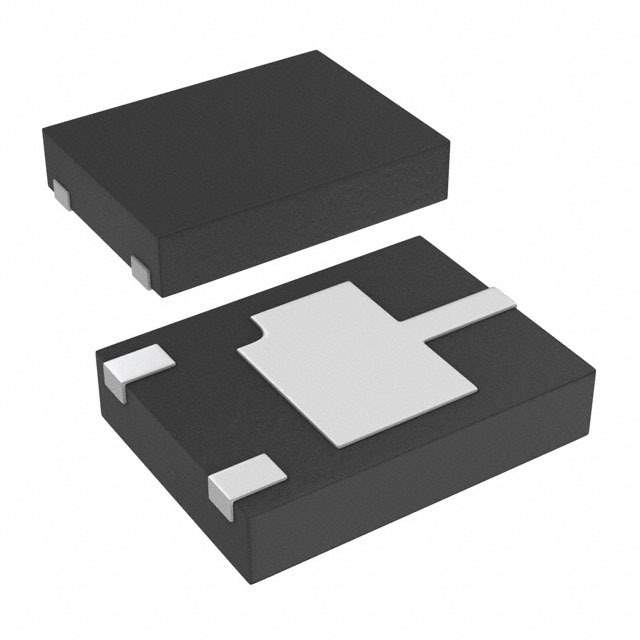

The AH1802-FY4G-7 is offered in a small and lead-free (RoHS compliant) package, which is not only environmentally friendly but also suitable for space-constrained applications. Its omnipolar operation, low power consumption, and high sensitivity make it an excellent choice for designers seeking a reliable Hall Effect sensor for their next project.

With its robust design and versatile features, the AH1802-FY4G-7 is a testament to Diodes Incorporated's commitment to providing innovative, high-quality components for a wide range of electronic applications.
