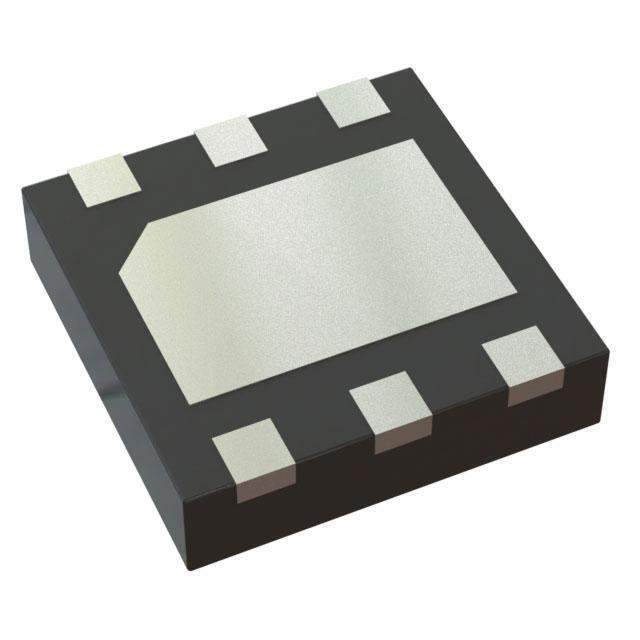

The AL8862FF-7 is a high-performance, step-down DC/DC converter designed by Diodes Incorporated, tailored for LED lighting applications. This versatile and efficient solution is capable of driving high-brightness LEDs with a constant current, ensuring consistent illumination and optimal performance across a variety of lighting setups.

Key Features

• Built-in MOSFET: The AL8862FF-7 integrates a power MOSFET, which simplifies the circuit design and reduces external component count, leading to a more compact and cost-effective solution.
• Wide Input Voltage Range: With an input voltage range from 5V to 60V, this converter is suitable for a broad range of LED lighting applications, from low-voltage industrial lighting to high-voltage residential and commercial lighting systems.
• High Efficiency: The device offers high efficiency up to 97%, minimizing energy loss and heat generation, thus extending the life of the LED lighting system.
• Adjustable Output Current: The output current can be set via an external resistor, giving designers the flexibility to tailor the lighting output to specific requirements.
• Dimming Capability: It supports both analog and PWM dimming, providing precise control over light intensity and enabling energy savings and dynamic lighting effects.
• Thermal Protection: The AL8862FF-7 includes thermal shutdown protection to prevent damage from overheating, enhancing the reliability and longevity of the device.
• Compact Package: Offered in a small-footprint SOT-26 package, it is ideal for space-constrained applications.

Applications

The AL8862FF-7 is designed for a diverse range of applications that require efficient and reliable LED driving capabilities. It is particularly well-suited for:

• Architectural Lighting
• Commercial and Residential LED Lighting
• Industrial Lighting Systems
• LED Backlighting
• Signage and Decorative LED Lighting

With its robust feature set and high performance, the AL8862FF-7 from Diodes Incorporated stands out as an excellent choice for designers looking to optimize their LED lighting solutions.
