Diodes Incorporated AP1501-T5RG-U Product Overview

The AP1501-T5RG-U is a high-performance, adjustable and fixed voltage step-down (buck) converter from Diodes Incorporated, designed to deliver a reliable and efficient power conversion solution for a wide range of applications. This versatile component is capable of driving a 5A load with excellent line and load regulation, making it an ideal choice for various electronic devices that require a stable power supply.

Key Features

• Output Voltage: The device offers an adjustable output range from 1.23V to 37V, allowing designers to tailor the voltage to meet specific requirements. It also comes in fixed voltage versions for common rails such as 3.3V, 5V, and 12V.
• High Efficiency: With an efficiency rating that can reach up to 85%, the AP1501-T5RG-U ensures minimal power loss during the conversion process, making it suitable for energy-sensitive applications.
• Load Capacity: Capable of delivering up to 5A of continuous output current, this buck converter can support a substantial load, making it a robust choice for high-power electronics.
• Thermal Protection: The device includes built-in thermal shutdown and current limit features to protect against overcurrent and overheating conditions, ensuring a longer operational lifespan and enhanced safety.
• Frequency Adjustment: The switching frequency can be adjusted up to 150kHz, allowing optimization for efficiency or component size depending on the application requirements.

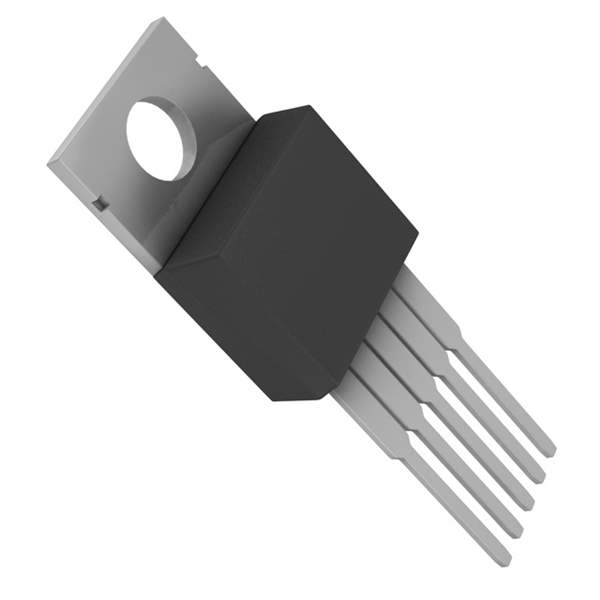

• Package: The AP1501-T5RG-U is available in a TO-220-5L package, which is known for its ease of use in PCB designs and excellent thermal performance.

Applications

The AP1501-T5RG-U is suitable for a broad range of applications, including but not limited to:

• Consumer Electronics
• Telecommunications
• Computer Systems
• Industrial Controls
• DC-DC Power Modules

With its combination of flexibility, efficiency, and power handling capability, the AP1501-T5RG-U from Diodes Incorporated stands out as a top choice for designers looking to implement a reliable power management solution in their next project.
