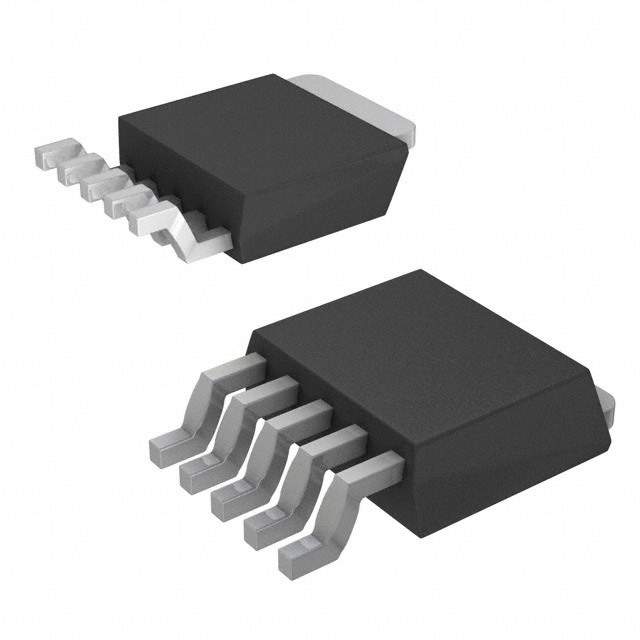

AP1507-D5L-13

Part No AP1507-D5L-13
Manufacturer Diodes Incorporated
Catalog PMIC - Voltage Regulators - DC DC Switching Regulators
Description IC REG BUCK ADJ 3A TO252-5L
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Diodes Incorporated
Packaging Reel - TR
Status Obsolete(EOL)
Purpose Step-Down
Topology Buck
Output Type Adjustable
Number of Outputs 1
Minimum Input Voltage 4.5V
Maximum Input Voltage 22V
Nominal Output Voltage (Min/Fixed) 1.23V
Maximum Output Voltage 18V
Output Current 3A
Frequency - Switching 150kHz
Synchronous Rectifier No
Temperature Range - Operating -20°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package TO-252-5
Win Source Part Number 009929-AP1507-D5L-13
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AP1507-D5L-13 CAD Model

Description

Diodes Incorporated AP1507-D5L-13: Buck Converter

The AP1507-D5L-13 is a high-performance 150kHz adjustable and fixed voltage buck (step-down) converter manufactured by Diodes Incorporated. This versatile component is designed to provide a cost-effective solution for systems that require voltage regulation and power efficiency. The AP1507 series is suitable for a wide range of applications, including consumer electronics, office equipment, and industrial control systems.

With its integrated 3A switch, the AP1507-D5L-13 is capable of delivering a continuous output current up to 3 amperes to the load with excellent line and load regulation. The device is highly efficient, which helps in reducing the heat generated and allows for a smaller footprint on the PCB.

The converter operates at a fixed frequency of 150kHz, which permits the use of small-sized filter components, resulting in a compact power supply design. Furthermore, the AP1507-D5L-13 offers adjustable output voltage from 1.23V to 37V, which provides design flexibility to power a broad range of devices. It also has a fixed output voltage version available for standard voltage rails.

Protection features of the AP1507-D5L-13 include thermal shutdown and current limit protection to prevent damage from overheating and overcurrent conditions. Additionally, the device incorporates a cycle-by-cycle overcurrent protection mechanism that enhances its reliability in demanding applications.

The AP1507-D5L-13 is available in the TO-252-5L (DPAK) package, which is known for its small size and excellent power dissipation capabilities. This makes it an ideal choice for space-constrained applications that require a high power density.

Key features of the AP1507-D5L-13 include:

  • 3A Output Current
  • 150kHz Fixed Frequency Internal Oscillator
  • Adjustable Output Voltage from 1.23V to 37V
  • Thermal Shutdown and Current Limit Protection
  • Voltage Mode Non-synchronous PWM Control
  • TO-252-5L (DPAK) Package for Optimal Power Dissipation

Overall, the AP1507-D5L-13 from Diodes Incorporated stands out as a robust, efficient, and versatile solution for a variety of power conversion needs.
