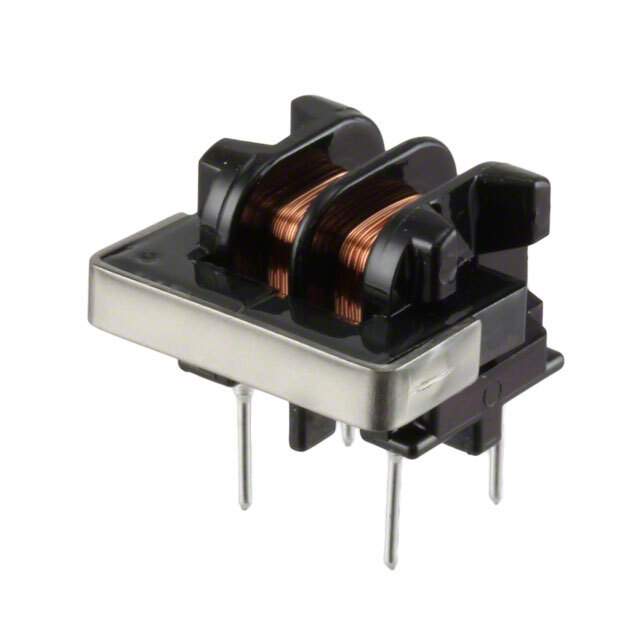

SU9H-R02140 Real Image
Same model may have multiple batches, images only for reference.

SU9H-R02140

Part No SU9H-R02140
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SU
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 14 mH @ 1 kHz
Current Rating (Max) 200mA
DC Resistance (DCR) (Max) 6Ohm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.669" L x 0.610" W (17.00mm x 15.50mm)
Height (Max) 0.492" (12.50mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SU9H
Other Names UALSU9HR021400,399-10708
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1276490-SU9H-R02140
Ultra Librarian 3D Model Ultra Librarian SU9H-R02140 CAD Model

Description

The KEMET SU9H-R02140 is a common mode choke that is part of the SU series.

  • Series: SU series
  • Filter Type: Power line filter type
  • Voltage Rating: 250V
  • Current Rating: 200mA
  • Height: 0.492 inches (12.50mm)
  • Length and Width: 0.669 inches x 0.610 inches (17.00mm x 15.50mm)
  • Inductance: 14 mH @ 1 kHz
  • DC Resistance (DCR): 6Ohm max
  • Frequency Range: -25°C to 120°C
  • Mounting: Through-hole mounting
  • Package: Vertical, 4 PC pin
  • Standard Package: 1,000
  • Applications: Power supplies, DC-DC converters, and EMI/RFI filtering
