The AP2552FDC-7 is a state-of-the-art power switch IC from Diodes Incorporated, designed to provide a high level of performance for USB and other hot-swap applications. This advanced power switch is part of Diodes Incorporated's extensive portfolio of integrated circuits that cater to energy-efficient and compact power management solutions.

Key Features

• Precision Current Limiting: The AP2552FDC-7 is engineered to protect systems and USB ports by precisely limiting the amount of current that can flow through the switch, thus preventing damage to both the source and the load in the event of an overcurrent condition.
• Fast Overcurrent Response: With a rapid response to overcurrent conditions, this power switch ensures that the system is protected by quickly disconnecting the load in the event of a fault.
• Thermal Shutdown Protection: The device includes an internal thermal shutdown feature that protects it from overheating. If the junction temperature exceeds the thermal shutdown threshold, the switch will turn off, thereby preventing thermal runaway.
• Controlled Rise Time: In order to minimize current surges during turn-on, the AP2552FDC-7 incorporates a controlled rise time, which reduces electromagnetic interference (EMI) and stress on the power source.
• Under-Voltage Lockout (UVLO): The UVLO feature ensures that the power switch operates at the correct voltage levels, preventing malfunctions that could occur if the supply voltage falls below a certain threshold.

Applications

The AP2552FDC-7 is ideal for a variety of applications where power distribution and overcurrent protection are crucial. These include:

• USB power distribution and peripheral ports
• Hot-swap power management
• Portable electronic devices
• Self-powered and bus-powered hubs

Package and Availability

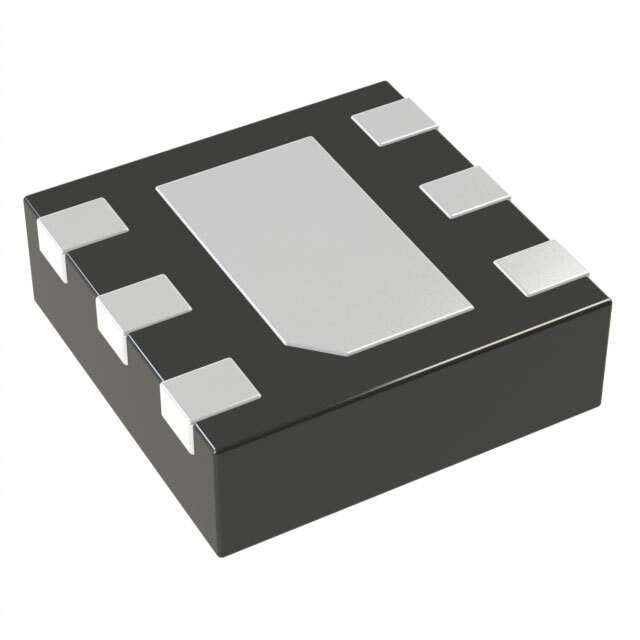

The device comes in a small form factor package, which is suitable for space-constrained applications. The AP2552FDC-7 is available in a 6-pin DFN2020 package, offering a compact footprint while still providing excellent thermal performance. For pricing, availability, and additional technical information, interested parties should contact Diodes Incorporated or their authorized distributors.
