Diodes Incorporated's AP7344D-2828RH4-7 Low Dropout Regulator

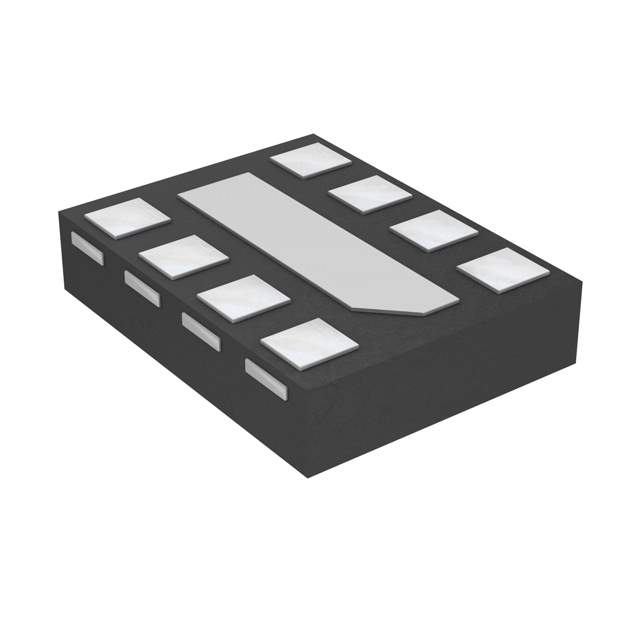

The AP7344D-2828RH4-7 from Diodes Incorporated is a high-performance, low dropout (LDO) regulator designed with precision, reliability, and efficiency in mind. This compact component is an ideal choice for space-constrained applications, offering a stable and accurate voltage supply with a low quiescent current. The device is housed in a small X2-DFN2020-6 package, making it suitable for portable electronic devices where size is a critical factor.

With an input voltage range of 2.2V to 5.5V, the AP7344D-2828RH4-7 is versatile enough to be used in a variety of circuits and systems. It delivers a fixed output voltage of 2.8V, which is ideal for powering sensitive analog and digital circuits that require a stable power supply. The regulator can supply up to 300mA of output current, ensuring that even high-demand devices can be adequately powered.

One of the standout features of this LDO regulator is its high accuracy, with a typical dropout voltage of just 250mV at 300mA load. This means that the AP7344D-2828RH4-7 maintains a consistent output even when the input voltage is very close to the output voltage, which is crucial for battery-powered devices where maximizing the usage of the available voltage is important.

The AP7344D-2828RH4-7 also includes several built-in protection features to ensure the longevity and stability of both the regulator and the device it powers. These include over-current protection, short-circuit protection, and thermal shutdown. Additionally, the regulator has an enable pin, allowing the power supply to be turned on or off as needed, which is useful for power-saving modes in battery-operated devices.

Overall, the AP7344D-2828RH4-7 is a highly reliable and efficient solution for applications requiring a regulated power supply. Its compact form factor, low dropout voltage, and robust protection features make it a top choice for designers and engineers looking to optimize their power management systems.
