The APR348W6-7 is a sophisticated secondary-side synchronous rectification MOSFET driver, specifically designed to enhance power efficiency in a wide range of power conversion applications. Manufactured by Diodes Incorporated, a leading global manufacturer and supplier of high-quality semiconductor products, this driver is tailored for use in flyback converters, which are commonly found in battery chargers and adapters.

Key Features

• High Efficiency: The APR348W6-7 promotes high-efficiency power conversion through precise control of the synchronous rectification process, reducing power loss and improving overall system performance.
• Versatility: This driver is compatible with a variety of MOSFETs, offering flexibility in design choices for different applications. It can be used in both low-side and high-side rectification configurations.
• Adaptive Gate Drive: The device provides adaptive gate drive timing to ensure optimal MOSFET turn-on and turn-off times, which minimizes body diode conduction losses.
• Advanced Protection Features: It includes built-in features such as under-voltage lockout (UVLO) and over-current protection (OCP), enhancing the safety and reliability of the power supply.

Applications

The APR348W6-7 is ideal for a range of applications that require efficient power conversion. Its common uses include:

• AC/DC battery chargers for smartphones, tablets, and laptops
• Power adapters for various consumer electronics
• Industrial power supplies
• LED lighting systems

Technical Specifications

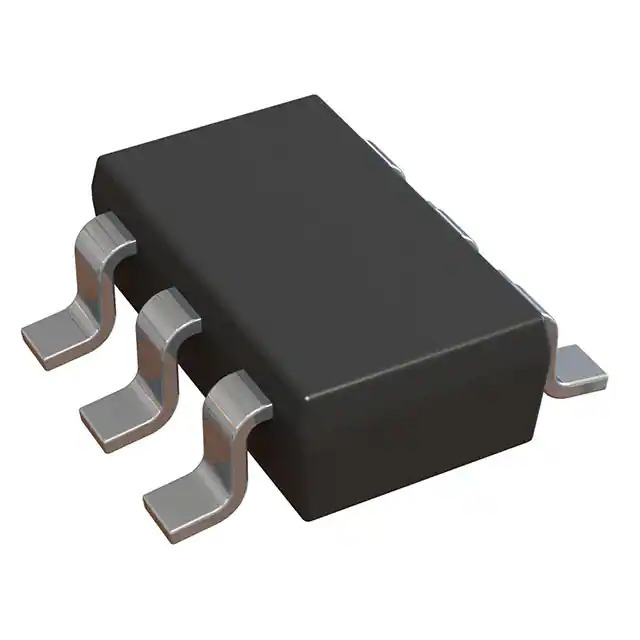

• Package: SOT26 (W6)
• Input Voltage Range: 4.5V to 28V
• Operating Temperature Range: -40°C to +125°C
• Qualification: Automotive Grade (AEC-Q100)

With its robust design, comprehensive protection features, and ability to drive a wide range of MOSFETs, the APR348W6-7 from Diodes Incorporated is an excellent choice for designers looking to improve the efficiency and reliability of their power conversion systems.
