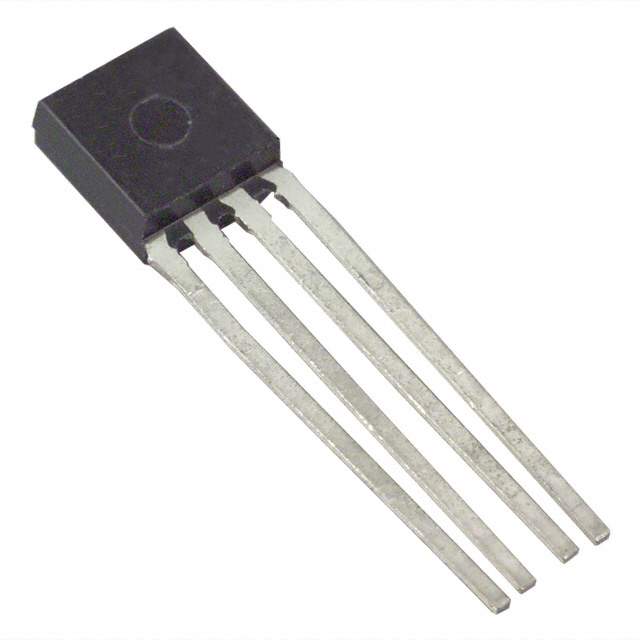

ATS276H-PL

Part No ATS276H-PL
Manufacturer Diodes Incorporated
Catalog Magnetic Sensors - Switches (Solid State)
Description MAGNETIC SWITCH LATCH 4SDIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Diodes Incorporated
Packaging Bulk
Status Obsolete(EOL)
Purpose Latch
Technology Hall Effect
Polarization South Pole
Sensing Range 5mT Trip, -5mT Release
Testing Conditions 25°C
Supply Voltage - Operating 3.5 V to 20 V
Current - Supply (Max) 25mA
Current - Output (Max) 400mA
Output Type Open Collector
Temperature Range - Operating -20°C to 85°C (TA)
Case / Package 4-SDIP
Win Source Part Number 079260-ATS276H-PL
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ATS276H-PL CAD Model

Description

The ATS276H-PL is a high-quality Hall Effect sensor designed and manufactured by Diodes Incorporated, a leading company in the semiconductor market. This sensor is specifically engineered to detect magnetic fields with high precision and convert the detected information into digital output signals. It is an integral component in a wide range of applications, including but not limited to automotive systems, industrial equipment, and consumer electronics.

Key Features

  • High Sensitivity: The ATS276H-PL is capable of detecting subtle changes in magnetic fields, ensuring accurate sensing even in applications with low magnetic signal strength.
  • Dual Hall Effect Elements: Equipped with two Hall effect elements, this sensor provides differential Hall signals, which enhances the accuracy and reliability of the detection.
  • Chopper-Stabilized Design: This design approach helps in reducing the offset drift and temperature-related inaccuracies, providing stable performance over a wide temperature range.
  • Wide Operating Voltage Range: The sensor operates efficiently within a voltage range of 3.5V to 20V, making it suitable for various power environments.
  • Robust Output Signal: The ATS276H-PL delivers a digital output that remains immune to electrical noise, ensuring reliable operation in electrically noisy environments.
  • Temperature Range: It is designed to operate in a temperature range from -40°C to +150°C, which allows its use in extreme conditions.

Applications

The versatility of the ATS276H-PL makes it an ideal choice for a multitude of applications. In the automotive sector, it can be used for camshaft and crankshaft position sensing, transmission sensors, and anti-lock braking systems. For industrial purposes, it is suitable for motor control, rotary encoding, and flow rate sensing. In consumer electronics, it can be implemented in smart home devices, fitness equipment, and personal gadgets where precise motion detection is required.

Quality and Reliability

Diodes Incorporated ensures that the ATS276H-PL meets the highest standards of quality and reliability. The sensor is built with a robust package that can withstand harsh environmental conditions, and its performance is rigorously tested to comply with industry-specific certifications and standards.
