The B260AF-13 is a high-performance Schottky barrier rectifier designed and manufactured by Diodes Incorporated, a leading company in the semiconductor market. This rectifier is engineered to provide efficient and reliable operation in a variety of electronic applications. With its robust design, the B260AF-13 is particularly well-suited for use in high-frequency power supplies, inverters, and as a freewheeling diode in various applications.

Key Features

• Low Forward Voltage Drop: The B260AF-13 boasts a low forward voltage drop, which enhances system efficiency by minimizing power loss during operation.
• High Surge Current Capability: This device can handle high surge currents, making it reliable for applications that experience transient overcurrent conditions.
• Guard Ring Die Construction: The guard ring die construction provides enhanced reliability through transient voltage protection and ensures a long operational life.
• Lead-Free Finish: The rectifier comes with a lead-free finish, making it compliant with current RoHS directives and environmentally friendly.

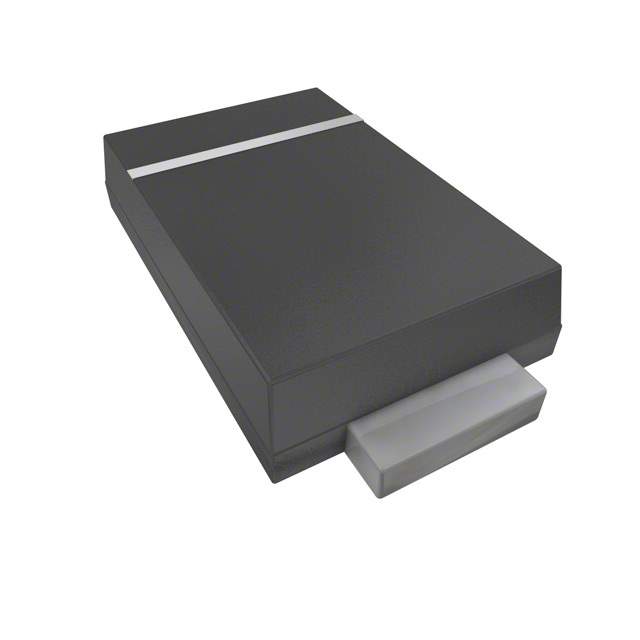

• Surface Mount Package: Its DO-214AC (SMA) package is designed for easy surface mounting, which is ideal for compact and high-density circuit designs.

Electrical Characteristics

With a maximum repetitive reverse voltage of 60V and a forward continuous current of 2A, the B260AF-13 is capable of meeting the requirements of a wide range of power applications. Its low power loss, high efficiency, and low thermal resistance are attributes that contribute to its performance stability.

Applications

The B260AF-13 Schottky barrier rectifier is versatile and can be used in various applications, including:

• Switching power supplies
• Converters
• Free-wheeling diodes
• Reverse battery protection
• DC-DC converters
• Power management functions

Quality and Reliability

Diodes Incorporated is committed to delivering high-quality products. The B260AF-13 is subjected to rigorous testing and quality control procedures to ensure it meets the high standards expected by the industry. Customers can trust the B260AF-13 for its performance and durability in the most demanding conditions.
