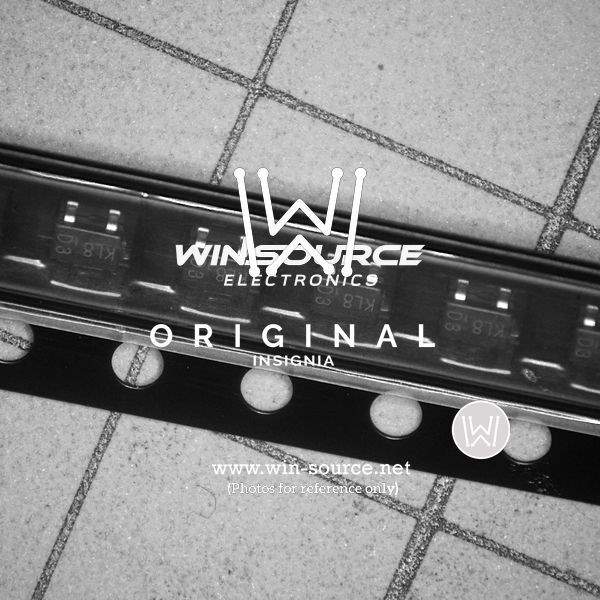

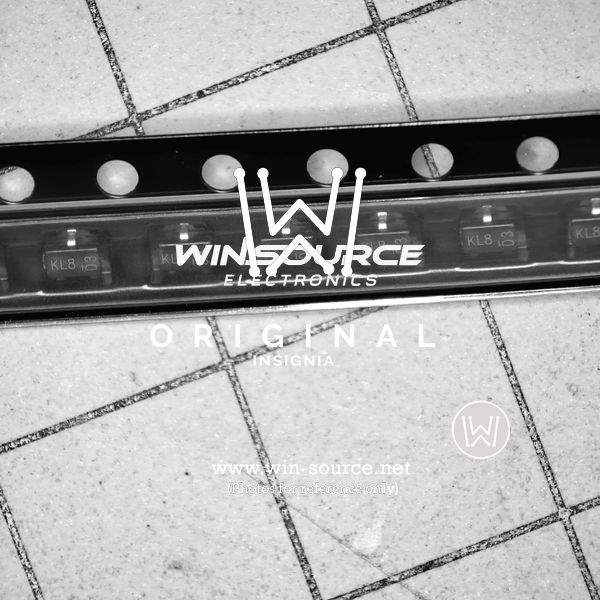

BAT54SW-7-F

Part No BAT54SW-7-F
Manufacturer Diodes Incorporated
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 30V SOT323
Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Diodes Incorporated
Packaging Reel - TR
Status Active
Diode Configuration 1 Pair Series Connection
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) (per Diode) 200mA (DC)
Voltage - Forward (Vf) (Max) @ If 1V @ 100mA
Reverse Recovery Time (trr) 5ns
Current - Reverse Leakage @ Vr 2μA @ 25V
Operating Temperature - Junction -65°C to 125°C
Mounting SMD (SMT)
Case / Package SOT-323
Win Source Part Number 011005-BAT54SW-7-F
Family Name BAT54SW
Introduction Date May 16, 2000
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2023
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian BAT54SW-7-F CAD Model

Description

Product Overview: BAT54SW-7-F from Diodes Incorporated

The BAT54SW-7-F is a high-performance Schottky barrier diode array designed and manufactured by Diodes Incorporated. This product is tailored for applications requiring efficient and fast switching with low forward voltage drop. The BAT54SW-7-F is presented in a compact SOT-323 package, making it ideal for space-constrained applications.

This diode array features dual series Schottky diodes, which are interconnected within the package, providing designers with a convenient solution for applications that require a pair of diodes with shared cathode configuration. The BAT54SW-7-F is characterized by its low power loss and high efficiency, which are critical in portable electronics and power-sensitive devices.

Key Features:

  • Low Forward Voltage: The BAT54SW-7-F exhibits a low forward voltage drop, typically around 0.32V at 10mA, which minimizes power loss and improves overall system efficiency.
  • Fast Switching Speed: With its Schottky barrier design, this diode array ensures fast switching performance, making it suitable for high-frequency applications.
  • Reverse Voltage: It can withstand a maximum repetitive reverse voltage of 30V, offering a good margin for various circuit designs.
  • Current Rating: The device supports a forward continuous current of up to 200mA, sufficient for a wide range of applications.
  • Low Capacitance: The BAT54SW-7-F has low diode capacitance, which is beneficial for high-speed switching and RF applications.
  • RoHS Compliant: This product is compliant with RoHS standards, ensuring that it meets global environmental and regulatory requirements.

Applications:

The BAT54SW-7-F is versatile and can be used in various electronic circuits. Its typical applications include:

  • Power Management Circuits
  • DC-DC Converters
  • Charge Pump Circuits
  • Protection Circuits
  • Voltage Clamping
  • Signal Demodulation

In conclusion, the BAT54SW-7-F Schottky diode array from Diodes Incorporated is a reliable and efficient component suitable for a myriad of electronic applications. Its small footprint, combined with its high performance and compliance with environmental standards, make it a preferred choice for designers and engineers in the electronics industry.
