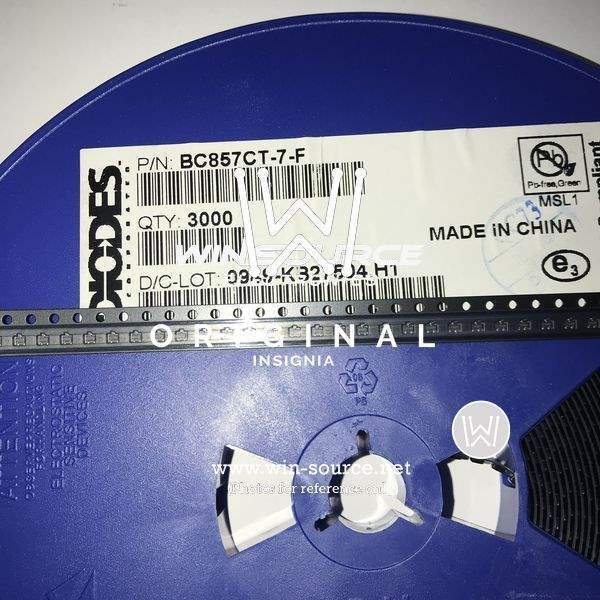

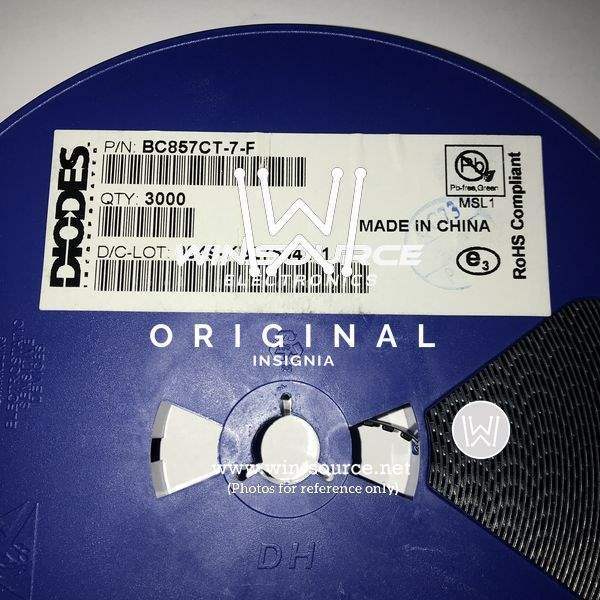

Diodes Incorporated BC857CT-7-F PNP Transistor

The BC857CT-7-F from Diodes Incorporated is a surface-mount, PNP bipolar junction transistor (BJT) specifically designed for general-purpose amplification and switching applications. This high-performance transistor is a suitable choice for a variety of electronic circuits, offering a blend of low power consumption and efficient operation.

Key Features

• Transistor Type: PNP - This transistor type is characterized by a negative-positive-negative configuration, making it ideal for use in positive-ground circuits.
• Package: SOT-523 - The small outline transistor package is designed for space-saving on printed circuit boards, while providing adequate thermal performance.
• V_CEO: 45V - The maximum collector-emitter voltage rating ensures the transistor can handle moderate voltage applications without breakdown.
• I_C: 100mA - A maximum collector current rating of 100 milliamperes makes this transistor suitable for small signal amplification.
• Power Dissipation: 200mW - With a power dissipation capability of 200 milliwatts, the BC857CT-7-F can manage a fair amount of power for its size.
• DC Current Gain (h_FE): The high current gain ensures efficient current amplification, making it effective for a range of applications.
• Complementary NPN Type Available: For applications requiring a push-pull configuration, a complementary NPN transistor is also available.
• RoHS Compliant: The product meets the requirements of the Restriction of Hazardous Substances Directive, making it environmentally friendly and suitable for use in various international markets.

Applications

The BC857CT-7-F transistor is versatile and can be used in various electronic devices and circuits. Its applications include, but are not limited to:

• Signal amplification in audio devices
• Driver stages in amplifiers
• Switching operations in digital circuits
• Power management in portable electronics
• Voltage regulation modules

With its reliable performance and compact form factor, the BC857CT-7-F from Diodes Incorporated is an excellent choice for designers and engineers looking to incorporate a dependable PNP transistor into their electronic designs.
