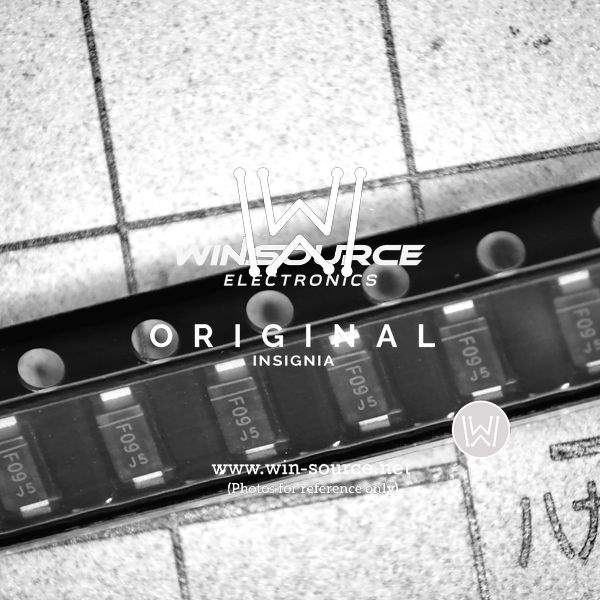

DFLS1100Q-7

Part No DFLS1100Q-7
Manufacturer Diodes Incorporated
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 100V POWERDI123
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 35 Weeks
Features Diode Schottky 100 V 1A Surface Mount PowerDI™ 123
Manufacturer Diodes Incorporated
Series Automotive, AEC-Q101
Package Reel - TR
Speed Fast Recovery =< 500ns, > 200mA (Io)
Mounting Surface Mount
Package POWERDI®123
Case / Package PowerDI™ 123
Family Name DFLS1100
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number DFLS1100Q-7DIDKR, DFLS1100Q-7DITR, DFLS1100Q-7DICT
Quantity per package 3000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 868640-DFLS1100Q-7
Ultra Librarian 3D Model Ultra Librarian DFLS1100Q-7 CAD Model

Description

DFLS1100Q-7 Power Rectifier by Diodes Incorporated

The DFLS1100Q-7 from Diodes Incorporated stands as a high-performance surface-mount Schottky barrier rectifier designed meticulously for applications requiring low voltage, high current operations, and efficient energy usage. This rectifier is housed in a compact PowerDI®123 package, which not only saves space but also ensures robust thermal performance and low thermal resistance, making it an ideal choice for compact and high-density circuit designs.

With a forward current rating of 1A and a low forward voltage drop, the DFLS1100Q-7 ensures minimal power loss during operation, enhancing the overall efficiency of the electronic system. Its maximum peak repetitive reverse voltage is rated at 100V, which makes it suitable for a wide range of applications, including but not limited to, power supply, lighting, and automotive systems.

One of the key features of the DFLS1100Q-7 is its low power loss and high efficiency, which is critical in power management applications. The device's low leakage current is a testament to its design, which aims to reduce standby power consumption, thereby extending the battery life of portable devices when used in such applications.

The rectifier is also characterized by its fast switching capabilities, which is essential for applications that demand quick response times. This feature, combined with its thermal characteristics, makes the DFLS1100Q-7 an excellent choice for high-frequency inverters, DC-DC converters, and freewheeling diodes in a variety of electronic circuits.

As for safety and reliability, the DFLS1100Q-7 is lead-free and RoHS compliant, ensuring that it meets the environmental standards and restrictions on hazardous substances. It also has a UL94V-0 Flammability Rating, providing an additional layer of security for the end-user.

In summary, the DFLS1100Q-7 from Diodes Incorporated is a versatile and efficient Schottky barrier rectifier that provides designers with a reliable and space-saving solution for a multitude of electronic applications. Its superior thermal performance and energy efficiency make it a smart choice for modern electronic designs that require high performance in a small footprint.
