Product Overview: DMN2008LFU-7 MOSFET by Diodes Incorporated

The DMN2008LFU-7 is a high-performance, N-Channel enhancement mode Field Effect Transistor (FET) designed and manufactured by Diodes Incorporated, a leading global provider of discrete, logic, analog, and mixed-signal components. This MOSFET is a testament to Diodes Incorporated's commitment to providing energy-efficient and miniaturized solutions for a variety of electronic applications.

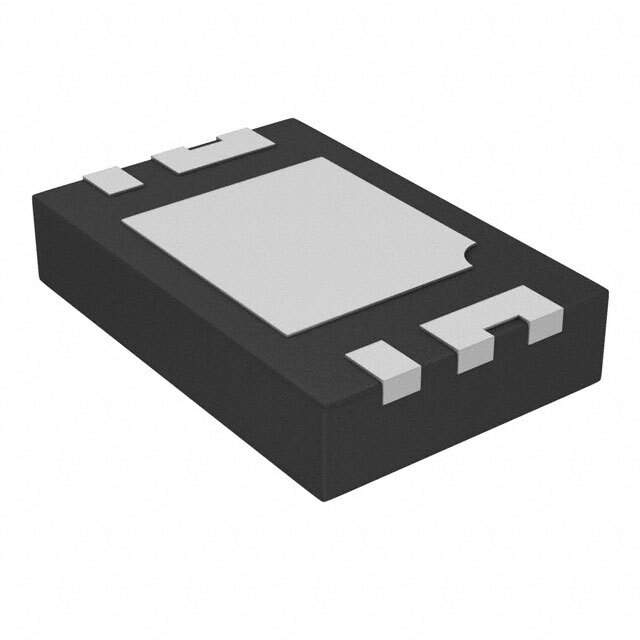

Constructed with advanced technology, the DMN2008LFU-7 offers low on-resistance and high switching performance, making it an ideal choice for power management tasks. It is housed in an ultra-small DFN2020 package, which not only saves precious board space but also enhances thermal performance due to its power dissipation capabilities.

This MOSFET operates with a drain-source voltage (V_DS) of 20V, which ensures that it can handle moderate voltage applications with ease. The continuous drain current (I_D) is rated at 6.5A at a temperature of 25°C, indicating its capacity to drive significant current for various circuit requirements. The low threshold voltage allows for operation at lower gate voltages, thus reducing the power required to switch the device on and off.

The DMN2008LFU-7 also exhibits a low gate charge (Q_G), which contributes to its fast switching characteristics. This feature is particularly beneficial in high-frequency circuits where switching losses can have a significant impact on overall efficiency. Its fast switching capabilities are complemented by its low input capacitance, which further enhances its performance in high-speed applications.

Applications for the DMN2008LFU-7 are diverse, ranging from load switch and power management solutions to battery protection and high-speed switching circuits. Its robustness is also demonstrated by its ability to withstand high energy pulses in the avalanche and commutation modes, making it a reliable choice for demanding environments.

Overall, the DMN2008LFU-7 from Diodes Incorporated is an excellent choice for designers looking for a compact, efficient, and high-performance N-Channel MOSFET. Its advanced features and small footprint make it a versatile component suitable for a wide array of electronic devices and power management systems.
