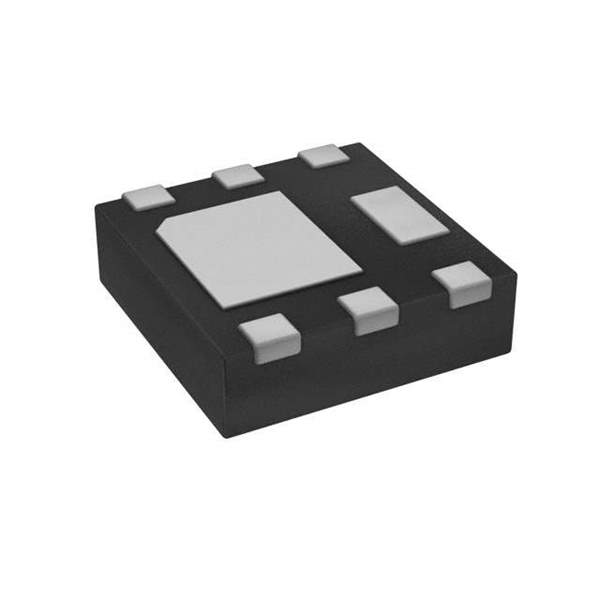

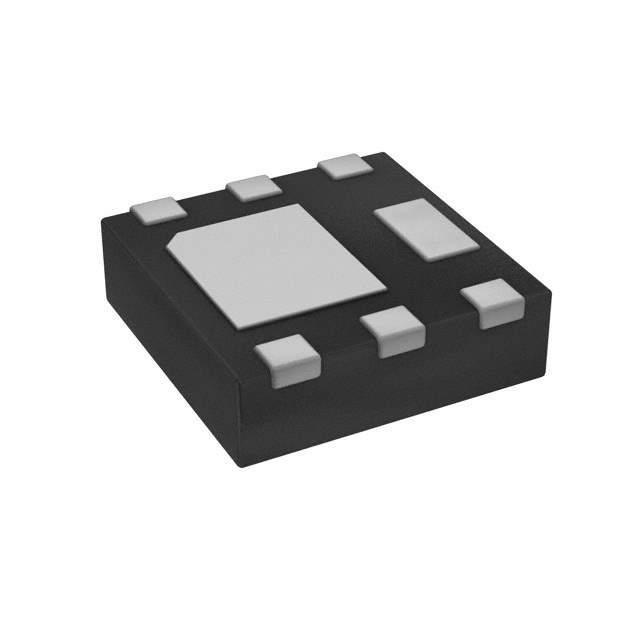

Product Overview: DMN3025LFDF-7

The DMN3025LFDF-7 is a high-performance, N-Channel MOSFET designed and manufactured by Diodes Incorporated. This compact and efficient power management component is an ideal choice for a wide range of applications, including power conversion, load switching, and motor control in consumer, industrial, and automotive environments.

Key Features

• Low On-Resistance: The DMN3025LFDF-7 boasts a low on-resistance (R_DS(on)), which enhances its efficiency by minimizing conduction losses when the MOSFET is in the 'on' state.
• High Continuous Drain Current: This MOSFET supports a high continuous drain current (I_D), making it suitable for high-power applications.
• PowerDI3333-8 Package: Encased in a compact PowerDI3333-8 package, the DMN3025LFDF-7 ensures a minimal footprint on the PCB, allowing for space-saving designs.
• Halogen and Lead-Free: The product is environmentally friendly, complying with RoHS standards by being both halogen and lead-free, which is critical for the latest electronic product requirements.

Electrical Characteristics

With a threshold voltage (V_GS(th)) that ensures low gate drive requirements, the DMN3025LFDF-7 is designed to operate efficiently with a 30V drain-source voltage (V_DS). Its fast switching speeds make it an excellent choice for high-frequency applications, while its robust thermal performance ensures reliability under varying operating conditions.

Applications

The versatility of the DMN3025LFDF-7 allows it to be used in a multitude of applications, such as:

• DC/DC Converters
• Power Management Circuits
• Load Switching
• Motor Control Systems
• Automotive Applications

Quality and Reliability

Diodes Incorporated is known for its commitment to quality, and the DMN3025LFDF-7 is no exception. It is designed to meet the stringent requirements of the industry, ensuring high reliability and performance. The product undergoes rigorous testing and quality control measures to ensure it meets the high standards expected by customers.

Whether you are designing power supplies, managing power in portable devices, or developing automotive electronics, the DMN3025LFDF-7 from Diodes Incorporated offers a blend of efficiency, reliability, and compactness that can help elevate your designs to the next level.
