Introducing the DMP1005UFDF-7 MOSFET from Diodes Incorporated

The DMP1005UFDF-7 is a cutting-edge, P-Channel enhancement mode field effect transistor (MOSFET) designed and manufactured by Diodes Incorporated. This semiconductor device is engineered to deliver high efficiency and reliability for a wide range of applications, making it a versatile choice for designers and engineers.

Key Features

• Device Type: P-Channel MOSFET
• Configuration: Single
• Drain-Source Voltage (V<sub>DS): -12V
• Continuous Drain Current (I<sub>D): -8.5A
• Power Dissipation (P<sub>D): 1.4W
• R<sub>DS(on): 20 mOhms at V<sub>GS = -4.5V

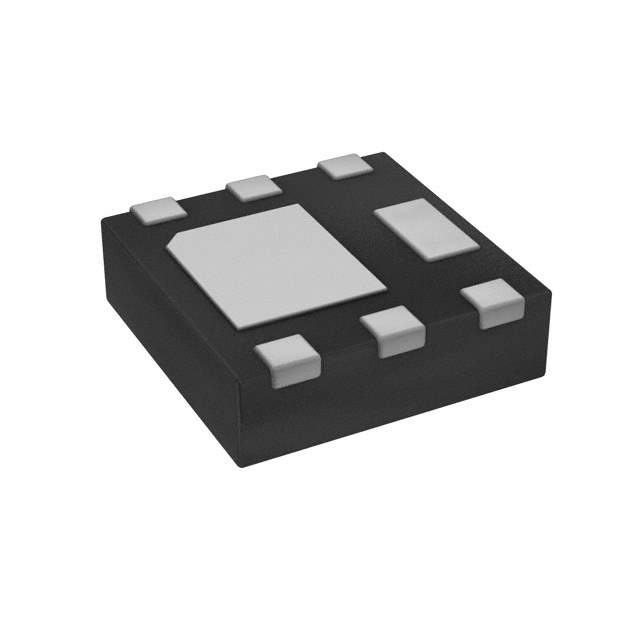

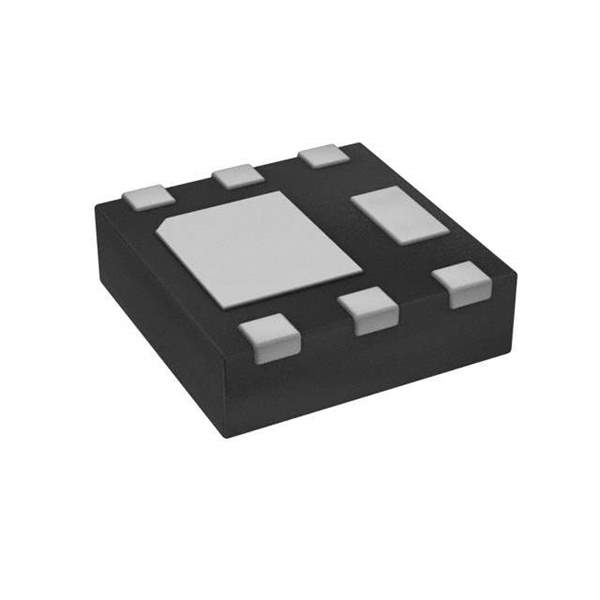

• Package: X2-DFN1006-3 (Type B)

High-Efficiency Performance

The DMP1005UFDF-7 is designed to optimize power efficiency, which is a critical factor in modern electronic devices. With a low threshold voltage and a low on-resistance, this MOSFET minimizes conduction losses, ensuring efficient power management in your circuit designs.

Compact and Durable Design

Encased in a compact X2-DFN1006-3 (Type B) package, the DMP1005UFDF-7 is suitable for space-constrained applications. Despite its small size, it does not compromise on durability. The robust construction of the transistor allows it to withstand harsh operating conditions, making it a reliable component for industrial, automotive, and consumer electronics.

Applications

The versatility of the DMP1005UFDF-7 makes it an ideal choice for various applications, including:

• Load Switches
• Power Management
• Battery Management Systems
• DC-DC Converters
• Portable Devices

Environmental Compliance

Diodes Incorporated is committed to environmental sustainability. The DMP1005UFDF-7 is compliant with RoHS standards, ensuring that it meets the European Union's directives on the restriction of hazardous substances.

In conclusion, the DMP1005UFDF-7 from Diodes Incorporated represents a blend of performance, efficiency, and compactness, making it an excellent choice for designers looking to enhance their power management solutions.
