The DMP2160UFDBQ-7 is a high-performance, P-Channel MOSFET brought to you by Diodes Incorporated, a leading manufacturer in the semiconductor market. This MOSFET is designed to provide efficient power management and signal switching within electronic circuits. With its compact form factor and robust capabilities, it is an ideal choice for a wide range of applications, including portable devices, power management systems, and various types of consumer electronics.

Key Features

• Low On-Resistance: The device boasts a low on-resistance of typically 0.058Ω at VGS = -4.5V, which ensures minimal power loss and improved efficiency during operation.
• High Power Dissipation: With a power dissipation of 1.25W, this MOSFET can handle significant levels of power, making it suitable for demanding applications.

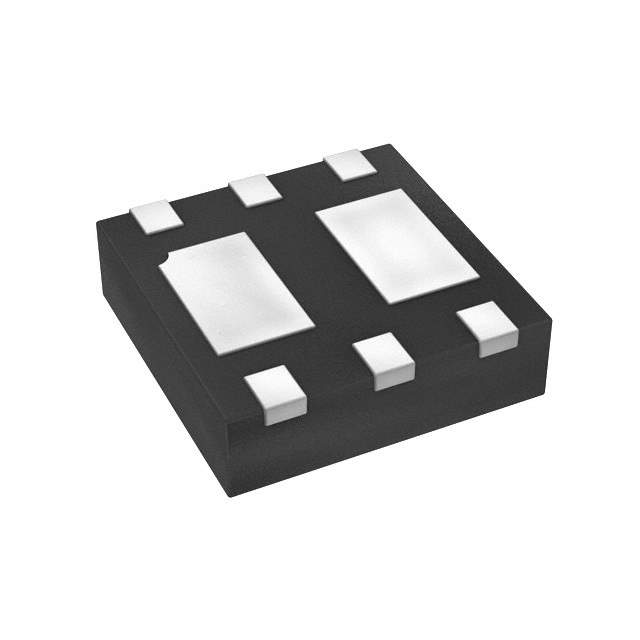

• Advanced Packaging: The DMP2160UFDBQ-7 comes in a compact DFN2020-6 (Type B) package, which allows for a smaller footprint on the PCB and is ideal for space-constrained designs.
• High Threshold Voltage: It features a threshold voltage (Vth) of -0.45V to -1.0V, which provides a good margin for logic-level applications.
• Low Input Capacitance: The device has a low input capacitance (Ciss) of 420pF, which contributes to faster switching speeds and reduced gate charge.

Applications

The DMP2160UFDBQ-7 is versatile and can be used in various applications, including:

• Load switching
• Battery management systems
• Power supply conversion
• DC-DC converters
• Portable electronics such as smartphones and tablets

Environmental and Quality Certifications

Diodes Incorporated is committed to environmental sustainability and quality. The DMP2160UFDBQ-7 complies with RoHS standards, ensuring that it is free from hazardous substances. Additionally, the product is manufactured in facilities that are certified for ISO 9001:2015 quality management systems, reflecting the company's dedication to high-quality production and reliability.
