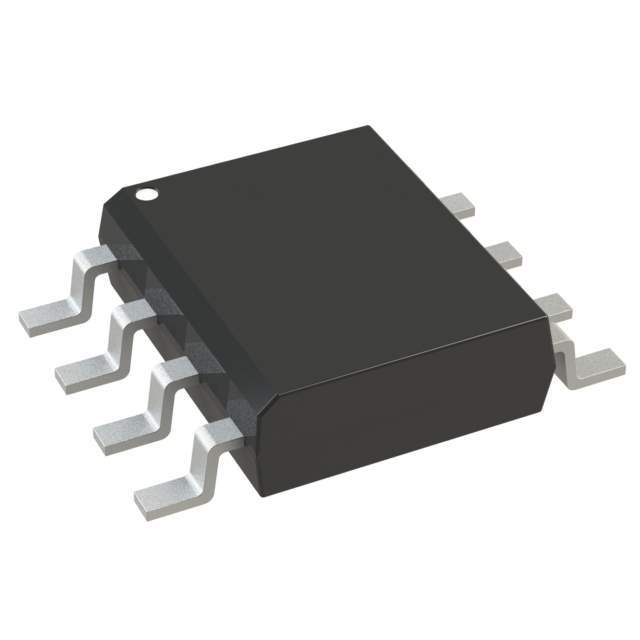

Same model may have multiple batches, images only for reference.
DMP3056LSSQ-13Diodes Incorporated
Same model may have multiple batches, images only for reference.

DMP3056LSSQ-13

Part No DMP3056LSSQ-13
Manufacturer Diodes Incorporated
Catalog TRANSISTORS
Description MOSFET BVDSS: 25V~30V SO-8 T&R 2
Datasheet
DMP3056LSSQ-13 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Diodes Incorporated
Category Discrete Semiconductor Products >Transistors FETs, MOSFETs Single FETs, MOSFETs
Part Status Active
FET Type P-Channel
Drain to Source Voltage (Vdss) 30 V
Current - Continuous Drain (Id) @ 25°C 4.9A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Max) @ Id, Vgs 45mOhm @ 6A, 10V
Vgs(th) (Max) @ Id 2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 17.3 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds 969 pF @ 15 V
Power Dissipation (Max) 1.2W (Ta)
Operating Temperature -55°C ~ 150°C (TJ)
Win Source Part Number WS1310395-DMP3056LSSQ-13
Ultra Librarian 3D Model Ultra Librarian DMP3056LSSQ-13 CAD Model

Description

This MOSFET is designed to meet the stringent requirements of automotive applications. It is qualified to AEC-Q101, supported by a PPAP, and is ideal for use in:

ā—  DC-DC Converters ā—  Power Management Functions ā—  Backlighting
