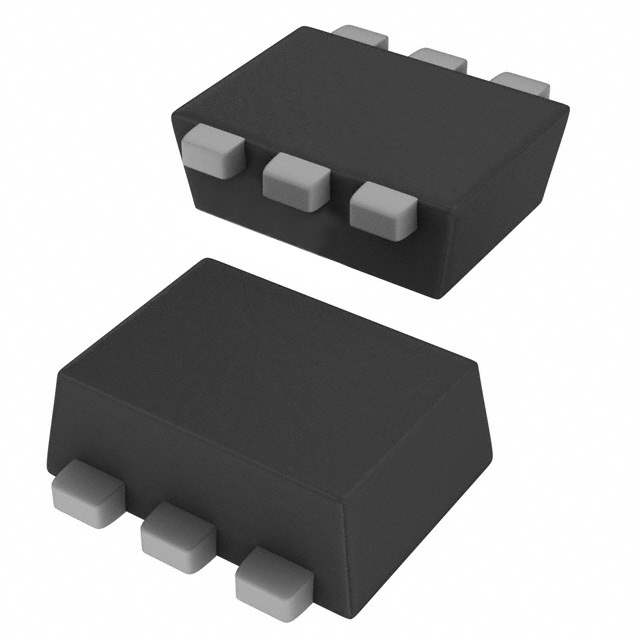

Product Overview: DN0150ADJ-7

The DN0150ADJ-7 is a high-performance, adjustable constant current regulator (CCR) from Diodes Incorporated, a leading manufacturer in the semiconductor market. This device is designed to provide a simple and efficient solution for driving LEDs within a wide range of applications, from automotive and industrial to consumer electronics and lighting systems.

Key Features

• Adjustable Output Current: This CCR allows for precise control of the output current, which can be adjusted through an external resistor. This feature enables users to customize the current to suit different LED configurations and applications.
• Wide Operating Voltage Range: The DN0150ADJ-7 operates over a broad voltage range, making it versatile for use in various circuits with different supply voltages.
• Thermal Protection: The device includes built-in thermal protection that helps to prevent damage from overheating, thereby enhancing the reliability and longevity of both the CCR and the LEDs it drives.
• High Efficiency: With its ability to drive LEDs directly from the high voltage supply, it eliminates the need for additional switching components, thus simplifying the design and improving efficiency.
• Compact SOT-89 Package: The DN0150ADJ-7 comes in a small SOT-89 package, which is ideal for space-constrained applications.

Applications

The DN0150ADJ-7 is suitable for a wide array of applications, including:

• LED lighting
• Automotive interior and exterior lighting
• Signage and traffic signals
• Decorative and architectural lighting
• Emergency lighting
• Industrial control indicators

Conclusion

With its adjustable output current, wide operating voltage, and thermal protection, the DN0150ADJ-7 by Diodes Incorporated is a versatile and reliable solution for driving LEDs. The efficiency, compact form factor, and ease of use make it an excellent choice for designers looking to optimize their LED lighting applications. Whether it's for general illumination or specialized lighting designs, the DN0150ADJ-7 stands out as a robust component that can meet the demands of a diverse range of lighting scenarios.
