Product Overview: MBRM760-13

The MBRM760-13 is a high-performance Schottky barrier rectifier designed and manufactured by Diodes Incorporated, a renowned leader in the semiconductor industry. This rectifier is engineered to provide efficient, low voltage drop power conversion in a compact, surface-mount package, making it an ideal choice for a variety of electronic applications.

Key Features

• Voltage Ratings: The MBRM760-13 is designed to handle a repetitive peak reverse voltage of 60V, making it suitable for use in medium voltage requirements.
• Current Capacity: With a forward continuous current of 7.5A, this device can support applications requiring a moderate power level.
• High Efficiency: Schottky barrier rectifiers are well-known for their low forward voltage drop, and the MBRM760-13 is no exception, offering reduced power loss and improved efficiency.
• Thermal Performance: The power package is optimized for low thermal resistance, ensuring reliable operation even under high switching frequencies or elevated temperatures.
• Guard Ring Die Construction: This feature provides enhanced ruggedness and long-term reliability, safeguarding against potential over-voltage damage.

Applications

The MBRM760-13 is versatile and can be used in a variety of power management applications, such as:

• Power supply units
• DC-DC converters
• Free-wheeling diodes in converters and motor control circuits
• Reverse battery protection
• Automotive applications

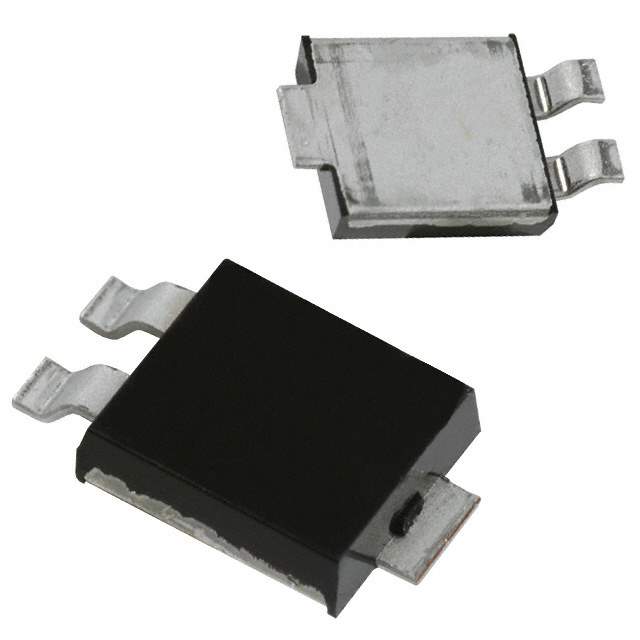

Physical Characteristics

The device comes in a low-profile MBRM package, which is designed for space-constrained applications. It is compatible with automated assembly processes, including pick and place handling. The MBRM760-13 is also RoHS compliant, meeting environmental standards that restrict the use of hazardous substances in electronic equipment.

Quality and Reliability

Diodes Incorporated is committed to delivering products that meet the highest standards of quality and reliability. The MBRM760-13 is subjected to rigorous testing and quality control procedures to ensure it performs to specifications across a range of conditions. Customers can rely on this Schottky barrier rectifier to provide a dependable solution for their power conversion needs.
