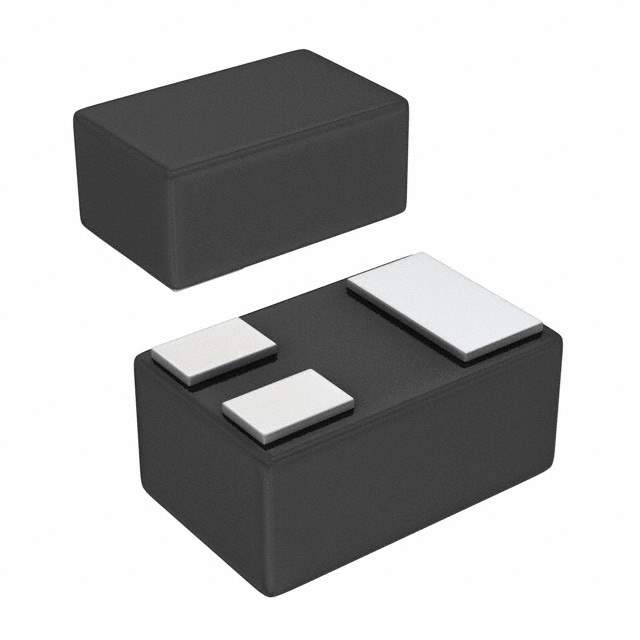

MMBT3906LP-7B

Part No MMBT3906LP-7B
Manufacturer Diodes Incorporated
Catalog Transistors (BJT) - Single
Description TRANS PNP 40V 0.2A DFN1006-3
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 25 Weeks
Features Bipolar (BJT) Transistor PNP 40 V 200 mA 300MHz 250 mW Surface Mount 3-X1DFN1006
Manufacturer Diodes Incorporated
Series Automotive, AEC-Q101
Package Reel - TR
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Surface Mount
Package 3-UFDFN
Case / Package 3-X1DFN1006
Family Name MMBT3906
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.21.0075
Other Part Number MMBT3906LP-7BDITR, MMBT3906LP-7BDICT, MMBT3906LP-7BDIDKR, MMBT3906LP7B
Quantity per package 10000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 927497-MMBT3906LP-7B
Ultra Librarian 3D Model Ultra Librarian MMBT3906LP-7B CAD Model

Description

The MMBT3906LP-7B is a high-quality PNP transistor from Diodes Incorporated, a leading manufacturer in the semiconductor industry. This small-signal transistor is designed for general-purpose amplifier and switching applications, making it a versatile component for a wide range of electronic circuits.

Key Features

  • Low Power Consumption: With its low-power design, the MMBT3906LP-7B is ideal for battery-operated and portable devices, ensuring efficient energy usage while delivering reliable performance.
  • High Gain Bandwidth Product: This transistor offers a high gain bandwidth product (fT), which is beneficial for applications requiring fast switching and amplification of signals.
  • Surface-Mount Package: The MMBT3906LP-7B comes in a compact SOT-523 package, which is suitable for automated assembly processes and helps in saving PCB space.
  • RoHS Compliant: Adhering to environmental standards, this product is RoHS compliant, minimizing the use of hazardous substances in electronic components.

Electrical Characteristics

With a collector-emitter voltage (VCEO) of -40V and a collector current capability of up to -200mA, the MMBT3906LP-7B is robust in handling typical PNP transistor applications. The device also features a low collector-emitter saturation voltage (VCE(sat)), which enhances overall efficiency by reducing power loss during operation.

Applications

The versatility of the MMBT3906LP-7B allows it to be used in a variety of applications, including:

  • Signal amplification in audio and radio frequency (RF) circuits
  • Driver stages in amplifiers and switches
  • Load switch circuits
  • Power management in portable electronics

Quality and Reliability

Diodes Incorporated is known for its commitment to quality and reliability, and the MMBT3906LP-7B is no exception. It is manufactured with the highest quality standards, ensuring that each component performs to its specifications, providing engineers and designers with confidence in their electronic designs.
