Introducing the PAM3101FKF330 Voltage Regulator from Diodes Incorporated

The PAM3101FKF330 is a high-quality, fixed output voltage regulator designed by Diodes Incorporated, a leading global manufacturer and supplier of high-performance semiconductors. This compact integrated circuit (IC) is known for its reliability and efficiency, making it an ideal choice for a wide range of electronic applications.

Key Features

• Output Voltage: The PAM3101FKF330 provides a fixed output voltage of 3.3V, which is commonly required for digital circuits and microcontroller-based systems.
• Current Capacity: It can deliver up to 150mA of continuous output current, making it suitable for low-power applications.
• Low Dropout: The low dropout voltage (LDO) feature of this regulator ensures efficient operation even when the input voltage is very close to the output voltage, thus maximizing battery life in portable devices.
• Thermal Protection: The device includes thermal shutdown protection, which helps to prevent damage from overheating by automatically turning off the regulator if the internal temperature exceeds safe limits.
• Short Circuit Protection: To safeguard the regulator and the load, the PAM3101FKF330 is equipped with current limiting and short-circuit protection.
• High Accuracy: The output voltage is precise, with tight regulation specifications, ensuring consistent performance across various operating conditions.

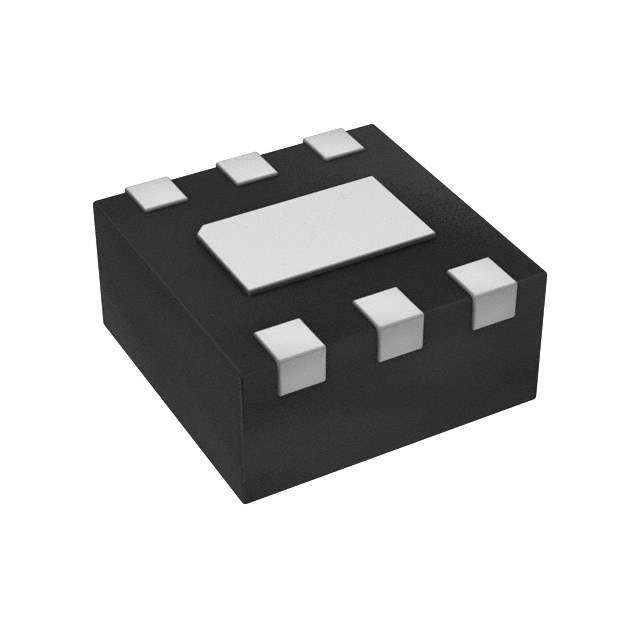

• Package: This voltage regulator is available in a small form factor package, making it easy to incorporate into space-constrained designs.

Applications

The versatility of the PAM3101FKF330 allows it to be used in a multitude of applications, including but not limited to:

• Battery-powered equipment
• Portable media players
• Wireless communication devices
• Microcontroller power supplies
• Peripheral power supplies

Conclusion

The PAM3101FKF330 from Diodes Incorporated is a robust and dependable fixed voltage LDO regulator that offers a combination of features tailored for stable and efficient power management. Its small package, high efficiency, and protective features make it an excellent choice for designers looking to enhance the performance and reliability of their electronic products.
