The PI3DBS12412AZHEX is a state-of-the-art high-speed differential switch from Diodes Incorporated, designed to deliver top-tier performance for advanced signal management. This product is a perfect solution for applications requiring the routing of high-speed differential signals with minimal signal degradation and crosstalk.

Key Features:

• High Bandwidth: The device supports a wide bandwidth which ensures compatibility with high-speed interfaces such as PCI Express Gen 3, SATA 3.0, USB 3.1, and more.
• Low Crosstalk: Engineered to minimize crosstalk, the PI3DBS12412AZHEX ensures signal integrity, making it ideal for sensitive applications where signal quality is paramount.
• Low Insertion Loss: With its low insertion loss, this switch maintains signal strength, ensuring reliable performance over longer distances and through various mediums.
• Bidirectional Operation: The PI3DBS12412AZHEX can route signals in both directions, offering greater flexibility in PCB layout and system design.
• Power Efficiency: The device boasts power-saving features, making it suitable for power-conscious applications, without compromising on speed or performance.

Applications:

The PI3DBS12412AZHEX is versatile and can be used in a variety of applications, including:

• High-speed data storage and retrieval systems
• Server and networking equipment
• Data center infrastructure
• Consumer electronics
• Signal routing in high-performance computing platforms

Technical Specifications:

Below are some of the technical specifications of the PI3DBS12412AZHEX:

• Operating Temperature: -40°C to +85°C
• Supply Voltage: 3.3V ±0.3V

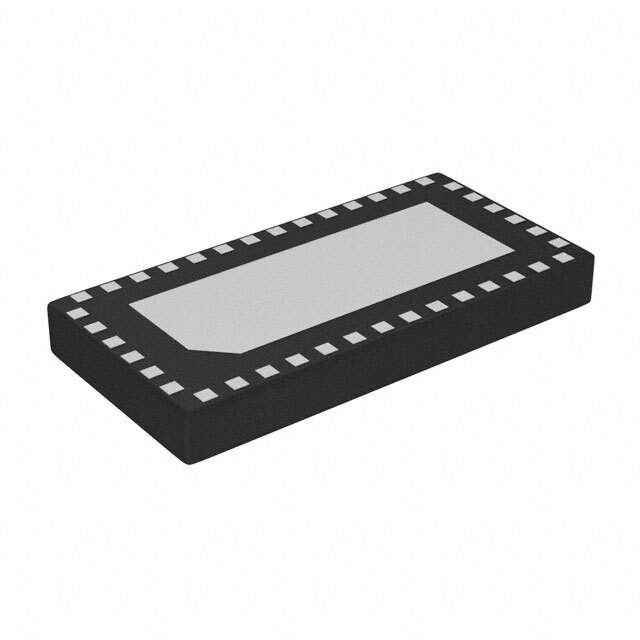

• Package: 42-contact TQFN (9x3.5mm)

With its robust design and impressive specifications, the PI3DBS12412AZHEX from Diodes Incorporated is an excellent choice for designers looking to enhance the performance and efficiency of their high-speed signal applications.
