Overview of PI5C162861BE from Diodes Incorporated

The PI5C162861BE is a high-performance, 24-bit to 48-bit multiplexer/demultiplexer bus switch from Diodes Incorporated, designed to provide seamless switching capabilities for data transfer and signal routing in a wide array of electronic applications. This switch is a part of the precision integrated circuits portfolio that is known for its reliability and efficiency.

Key Features

• High Bandwidth: The PI5C162861BE offers a very high bandwidth which ensures minimal signal delay and high-speed data transfer, making it suitable for applications requiring fast switching and data communication.
• Low Power Consumption: This device is designed to operate with low power consumption, making it an ideal choice for power-sensitive applications.
• 5V Tolerant: The inputs and I/Os are 5V tolerant, thereby providing compatibility with mixed-voltage environments and enabling the device to support both 3.3V and 5V logic levels.
• Bi-directional Switch: The PI5C162861BE can be used as a bi-directional switch, allowing data flow in both directions which is essential for versatile bus management.
• Low On-Resistance: It has a low on-resistance between the input and output ports, which minimizes signal attenuation and ensures integrity.

Applications

The PI5C162861BE is suitable for a wide range of applications, including but not limited to:

• High-speed data acquisition systems
• Communication devices
• Networking equipment
• Signal routing in servers and routers
• Computer motherboards

Quality and Reliability

Diodes Incorporated is known for their commitment to quality, and the PI5C162861BE is no exception. It is built to meet high standards of performance and reliability, ensuring that it can withstand the demands of even the most challenging electronic systems.

Package and Availability

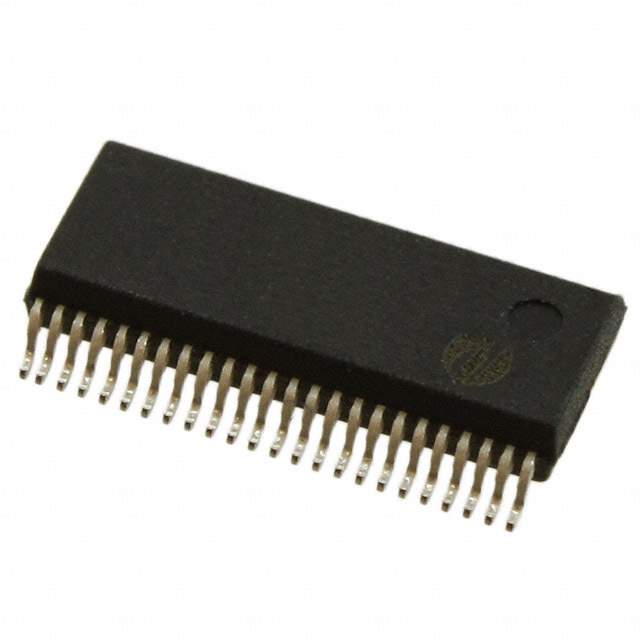

The PI5C162861BE is available in a TSSOP package, which is suitable for surface mount technology and is widely used in modern PCB designs. This package provides a compact footprint while still offering excellent thermal performance and ease of integration into a variety of electronic products.

For detailed specifications, application notes, and additional resources, interested parties should consult the official datasheets and product documentation available through Diodes Incorporated's website or authorized distributors.
