Diodes Incorporated PI5C3384QE: High-Speed CMOS Logic 10-Bit Bus Switch

The PI5C3384QE from Diodes Incorporated is a high-performance, CMOS device that operates as a 10-bit bus switch. This component is designed to deliver quick switching performance and signal gating for high-speed data transmission and processing applications. With its low on-resistance and minimal propagation delay, the PI5C3384QE is an excellent choice for efficient and reliable signal routing in a variety of digital systems.

Key Features

• High-Speed Switching: The PI5C3384QE offers rapid switching capabilities, making it suitable for high-frequency signal gating and bus management.
• Low On-Resistance: With a typical on-resistance of only 5 ohms, this bus switch provides a nearly transparent path for signals, ensuring minimal signal distortion and power loss.
• Wide Operating Voltage Range: It operates over a wide voltage range of 4.5V to 5.5V, accommodating various logic levels and providing design flexibility.
• Low Power Consumption: The device features a low quiescent current, which significantly reduces power consumption, especially in battery-operated equipment.
• 5V Tolerant: The PI5C3384QE is tolerant to 5V signals even when powered down, making it robust in mixed-voltage environments.
• Bi-Directional Data Flow: Data can flow in both directions through the switch, adding to the versatility of the device in complex bus management schemes.
• Industrial Operating Temperature: The device is rated for an industrial operating temperature range of -40°C to +85°C, ensuring reliability in harsh conditions.

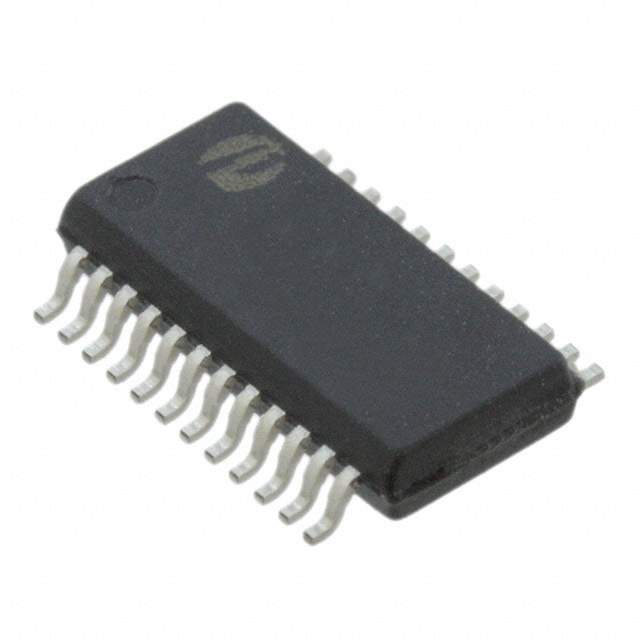

• Packaging: The PI5C3384QE is available in a QSOP-24 (Quarter Size Outline Package) that is suitable for space-constrained applications.

Applications

The PI5C3384QE is commonly used in a range of applications that require efficient and reliable bus management. These include:

• Server and Networking Equipment
• Data Communication Systems
• Signal Gating and Routing
• Memory Switching Circuits
• Peripheral Switching

With its combination of speed, low power, and versatility, the PI5C3384QE from Diodes Incorporated stands out as a premier choice for designers looking to enhance the performance of their digital systems.
