Introducing the ZXMN6A11GTA MOSFET by Diodes Incorporated

The ZXMN6A11GTA is a high-performance, N-channel enhancement mode field-effect transistor (MOSFET) designed and manufactured by Diodes Incorporated. This MOSFET is a testament to Diodes Incorporated's commitment to providing power management solutions that combine efficiency with miniaturization, catering to a wide range of electronic applications.

Key Features

• Device Type: N-Channel MOSFET
• Configuration: Single
• Drain-Source Voltage (V<sub>DS): 60V
• Continuous Drain Current (I<sub>D): 5.5A
• R<sub>DS(on): Very low at 0.042Ω (max)
• Power Dissipation (P<sub>D): 1.25W

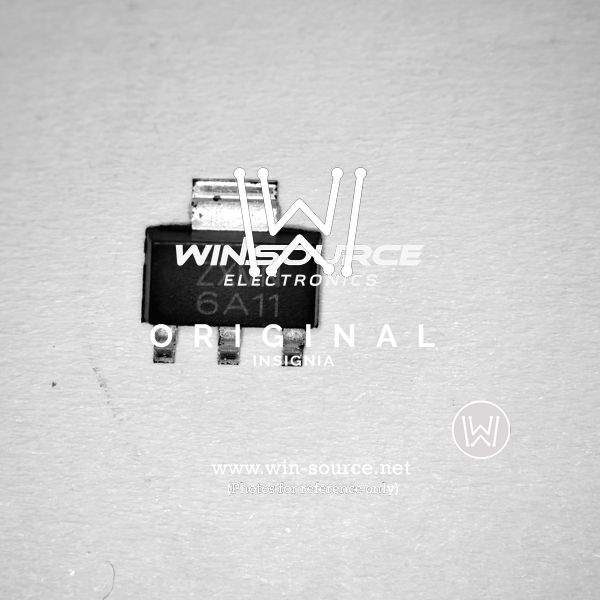

• Package: SOT-223
• Operating Temperature Range: -55°C to +150°C

The ZXMN6A11GTA is designed for high-efficiency power management tasks. With its low on-resistance (R<sub>DS(on)), the device ensures minimal power loss during operation, making it an ideal choice for power-sensitive applications. The MOSFET operates at a drain-source voltage of 60V, providing a robust solution for circuits operating at these voltage levels.

With a continuous drain current rating of 5.5A, the ZXMN6A11GTA can handle significant power without overheating, thanks to its power dissipation capabilities of 1.25W. This makes it suitable for a variety of applications, including but not limited to, switch-mode power supplies, power converters, motor drives, and other power-intensive applications.

The device is housed in a compact SOT-223 package, which is not only space-efficient but also offers excellent thermal performance for its size. The operating temperature range of -55°C to +150°C ensures reliability and performance even under extreme conditions.

Overall, the ZXMN6A11GTA MOSFET from Diodes Incorporated is a high-quality component that offers a balance of power handling, efficiency, and thermal performance, making it a versatile choice for designers looking to optimize their power management systems.
