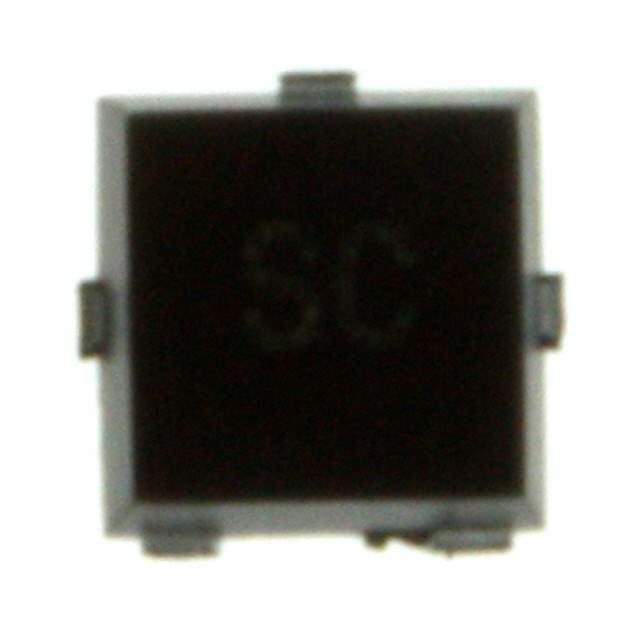

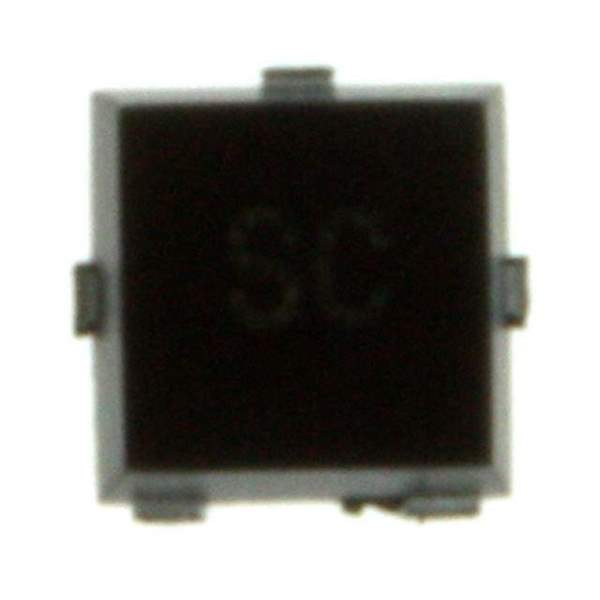

The ZXT2M322TA is a high-performance, low-saturation bipolar transistor from Diodes Incorporated, designed to deliver efficient power management within a compact SOT23 package. This versatile transistor is ideal for a range of applications, including but not limited to, power regulation, switching, and amplification in consumer electronics, automotive circuits, and industrial systems.

Key Features

• Device Type: Bipolar Transistor (BJT)
• Package Type: SOT23, a small outline transistor housing designed for surface-mount technology
• Configuration: Dual NPN
• Collector-Emitter Voltage (Vceo): 20V, allowing for operation in most low to medium voltage applications
• Collector Current (Ic): Up to 2A, providing sufficient current handling for a wide array of uses
• Power Dissipation (Pd): Capable of dissipating up to 1W, ensuring reliable operation under typical conditions
• DC Current Gain (hFE): High gain performance, ensuring efficient current amplification
• Transition Frequency (fT): High frequency operation is supported, suitable for fast-switching applications
• RoHS Compliant: Meets environmental standards by restricting the use of hazardous substances

Applications

The ZXT2M322TA is a versatile component that can be implemented in various electronic circuits. Its robust performance makes it suitable for:

• Power supply regulation
• DC-DC converters
• Motor control circuits
• Signal processing
• Switching applications in consumer electronics such as smartphones, tablets, and laptops
• Automotive electronics for controlling lighting, entertainment systems, and more
• Industrial automation systems requiring reliable switching and regulation

Quality and Reliability

Diodes Incorporated is known for its commitment to quality, and the ZXT2M322TA is no exception. Each transistor is manufactured with precision and tested to ensure it meets the company's high standards for performance and reliability. Customers can trust in the ZXT2M322TA for their critical electronic designs.
