Product Overview: ZXTN04120HFFTA by Diodes Incorporated

The ZXTN04120HFFTA is a high-performance, low-saturation NPN bipolar junction transistor (BJT) designed and manufactured by Diodes Incorporated, a leading global manufacturer and supplier of high-quality application-specific standard products within the broad discrete, logic, analog, and mixed-signal semiconductor markets.

Key Features

• High Current Capability: The device can handle continuous collector currents up to 4A, making it suitable for high-power applications.
• Low Saturation Voltage: It boasts a low collector-emitter saturation voltage of typically 195mV at 4A, which enhances its efficiency by minimizing power loss during operation.
• High Power Dissipation: With a power dissipation of 2W, this transistor can withstand thermal stresses in demanding scenarios.
• High Performance: The ZXTN04120HFFTA offers excellent hFE characteristics with a minimum of 120 at 2A, ensuring robust and reliable operation.
• RoHS Compliant: It adheres to the Restriction of Hazardous Substances Directive, making it environmentally friendly and suitable for use in green products.

Applications

This versatile transistor is ideal for a range of applications, including:

• Power management functions
• DC-DC converters
• Load switches
• Motor control circuits
• Amplification applications

Product Specifications

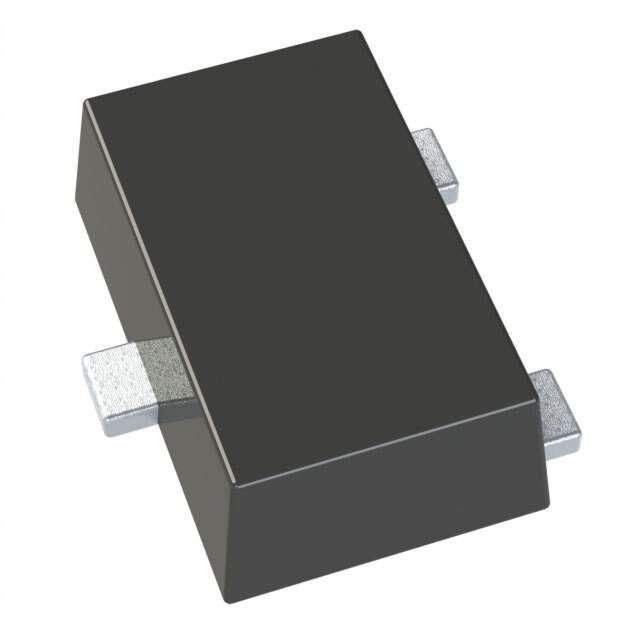

The ZXTN04120HFFTA is available in an SOT23F package, which is a surface-mount, small footprint package that is suitable for compact PCB layouts. The transistor operates over a wide temperature range from -55°C to +150°C, allowing for operation in extreme environmental conditions.

Quality and Reliability

Diodes Incorporated is committed to providing high-quality products. The ZXTN04120HFFTA has undergone rigorous testing to ensure its performance and reliability, meeting the stringent standards required for industrial and consumer electronic devices.
