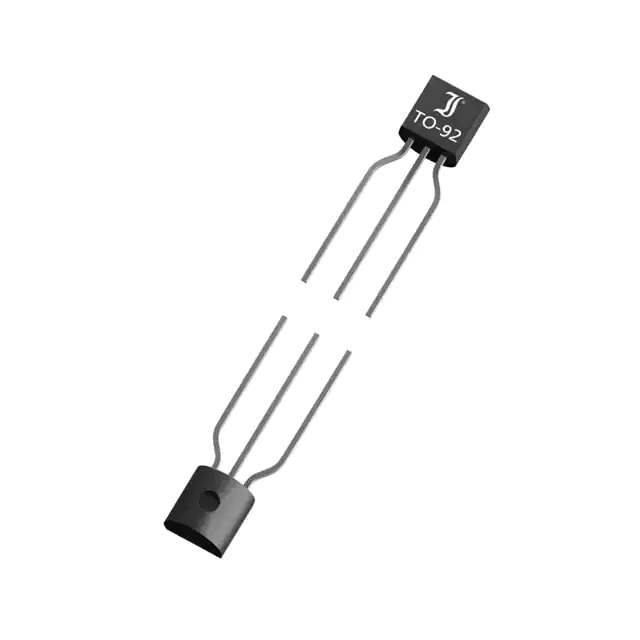

BC558A Real Image
Same model may have multiple batches, images only for reference.

BC558A

Part No BC558A
Manufacturer DIOTEC Electronics Corporation
Catalog Transistors (BJT) - Single
Description TRANS PNP 30V 0.1A TO92
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - Bipolar (BJT) - Single Bipolar Transistors
Mfr DIOTEC Electronics Corporation
Package Tape & Reel
Product Status Active
Transistor Type PNP
Current - Collector (Ic) (Max) 100 mA
Voltage - Collector Emitter Breakdown (Max) 30 V
Vce Saturation (Max) @ Ib, Ic 650mV @ 5mA, 100mA
Current - Collector Cutoff (Max) 15nA
DC Current Gain (hFE) (Min) @ Ic, Vce 110 @ 2mA, 5V
Power - Max 500 mW
Frequency - Transition 150MHz
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package TO-92
Standard Package 4,000 pcs
MSL Level Not Applicable
HTSUS 8541.21.0000
Win Source Part Number 569275-BC558A
Ultra Librarian 3D Model Ultra Librarian BC558A CAD Model

Description

The 569275-BC558A is a PNP bipolar transistor that is commonly used in electronic circuits.

  • Maximum Power: 500mW
  • Voltage Collector Emitter Breakdown: 30V
  • Maximum Collector Current: 100mA
  • Vce Saturation: 650mV @ 5mA and 100mA
  • Collector Cutoff Current: 15nA
  • DC Current Gain: 110 @ 2mA and 5V
  • Transition Frequency: 150MHz
  • The 569275-BC558A is a through-hole transistor that is easy to mount and provides reliable performance.
  • It is an active product in the discrete semiconductor products category and is manufactured by DIOTEC Electronics Corporation, a reputable brand in the industry.
