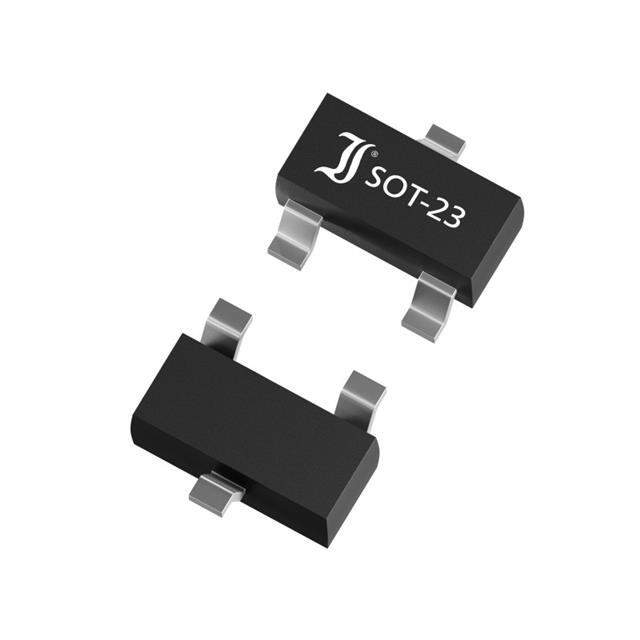

BC847B-C Real Image
Same model may have multiple batches, images only for reference.

BC847B-C

Part No BC847B-C
Manufacturer DIOTEC Electronics Corporation
Catalog Transistors (BJT) - Single
Description BJT, SOT-23, 45V, 100MA, 0 / Bipolar (BJT) Transistor NPN 45 V 100 mA 300MHz 250 mW Surface Mount SOT-23
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - Bipolar (BJT) - Single
Mfr Diotec Semiconductor
Package Tape & Reel (TR)
Transistor Type NPN
Current - Collector (Ic) (Max) 100 mA
Voltage - Collector Emitter Breakdown (Max) 45 V
Vce Saturation (Max) @ Ib, Ic 600V @ 5mA, 100mA
DC Current Gain (hFE) (Min) @ Ic, Vce 290 @ 2mA, 5V
Power - Max 250 mW
Frequency - Transition 300MHz
Mounting SMD (SMT)
Supplier Device Package SOT-23
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
HTSUS 8541.21.0000
Other Names 2796-BC847B-CTR
Win Source Part Number 1048407-BC847B-C
Ultra Librarian 3D Model Ultra Librarian BC847B-C CAD Model

Description

The 1048407-BC847B-C is an NPN bipolar transistor with a maximum power of 250mW and a voltage collector emitter breakdown of 45V.

  • Package: Tape and reel
  • Mounting Type: Surface mount
  • DC Current Gain: 290 @ 2mA, 5V
  • Frequency Transition: 300MHz
