Same model may have multiple batches, images only for reference.

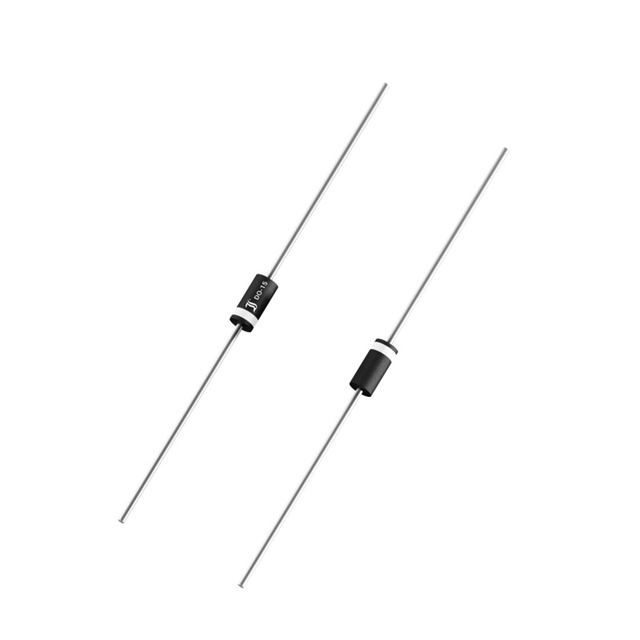

BZW06-40 Real Image
Same model may have multiple batches, images only for reference.

BZW06-40

Part No BZW06-40
Manufacturer DIOTEC Electronics Corporation
Catalog TVS - Diodes
Description TVSDIODE,DO-15,40.2V,600W,UNI / 64.8V Clamp 9.3A Ipp Tvs Diode Through Hole DO15/DO204AC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Diotec Semiconductor
Package Strip
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 40.2V
Voltage - Breakdown (Min) 44.7V
Voltage - Clamping (Max) @ Ipp 64.8V
Current - Peak Pulse (10/1000µs) 9.3A
Power - Peak Pulse 600W
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -50°C ~ 175°C (TJ)
Mounting Type Through Hole
Package / Case DO-204AC, DO-15, Axial
Supplier Device Package DO15/DO204AC
Other Names 2721-BZW06-40
Standard Package 30
Win Source Part Number 1222676-BZW06-40
Ultra Librarian 3D Model Ultra Librarian BZW06-40 CAD Model

Description

The BZW06-40 electronic component is a circuit protection TVS-Diode type manufactured by Diotec Semiconductor.

  • Type: TVS-Diode
  • Power Peak Pulse: 600W
  • Voltage Reverse Standoff: 40.2V
  • Voltage Breakdown (min): 44.7V
  • Voltage Clamping (max) @ Ipp: 64.8V
  • Current Peak Pulse (10/1000µs): 9.3A
  • Package/Case: DO-204AC, DO-15, Axial
  • Supplier Device Package: DO15/DO204AC
  • Operating Temperature Range: -50°C ~ 175°C (TJ)
